Description
MODEL: BD-PON-J3
PON optical Power Meter is small size, handheld, low loss, has two output ports for OLT/Video and ONU, huge data storage, USB connection.
The PON optical Power Meter is a handheld testing equipment with a good quality, low loss, and small size. The optical power meter is designed for FTTx PON network installation, maintenance, and testing, and may be used for GPON, EPON, APON, and BPON networks. The OLT/Video and ONU output ports on the fiber power meter support CW/burst downstream signal detection at 1490/1550nm and upstream detection at 1310nm. By threshold testing, the fiber optic power meter can directly display the status of pass, caution, or failure. It is an excellent optic tool for setting up and maintaining PONs.

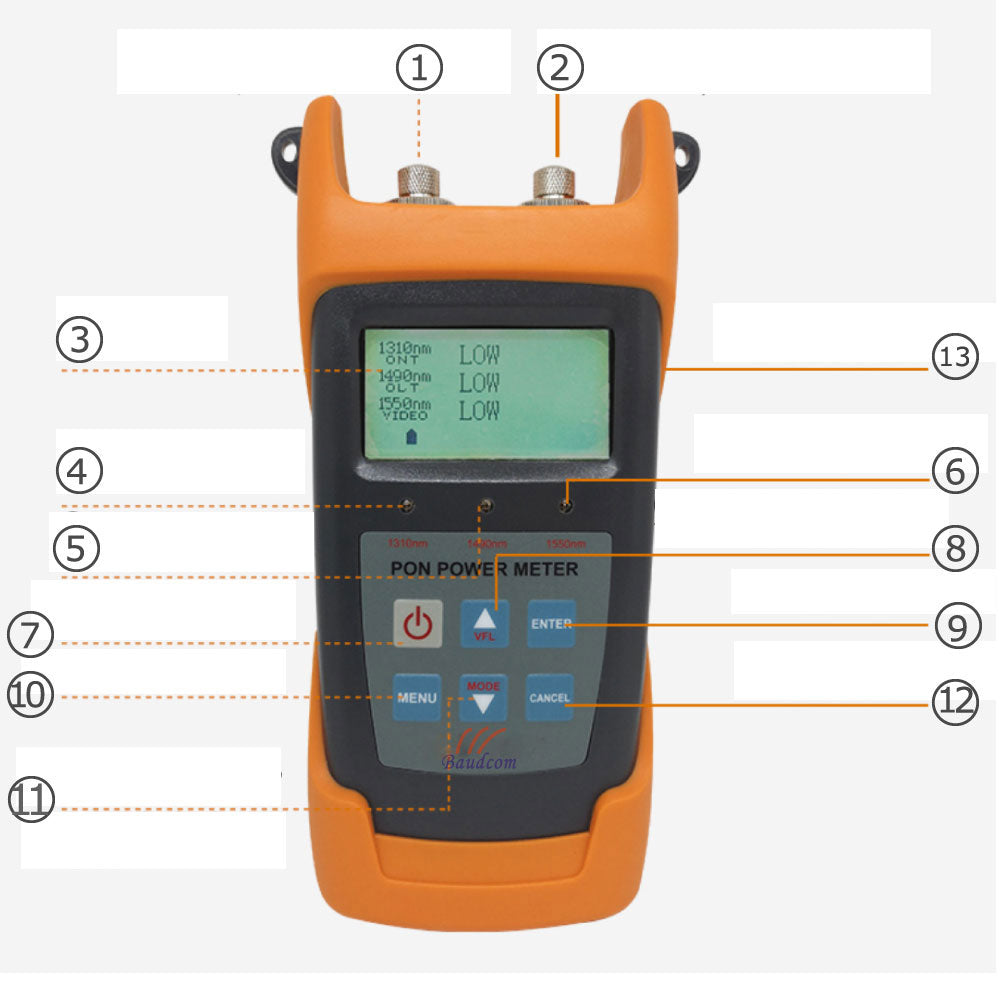

| 1 | OLT / video downlink signal detection port(1490/1550nm) |
| 2 | ONT Uplink Signal Detection Port(1310nm) |
| 3 | LCD Display |
| 4 | ONT uplink signal fast judgment indicator(1310nm) |
| 5 | OLT downlink signal fast judgment indicator(1490nm) |
| 6 | Video Signal Fast Judgment Indicator(1550nm) |
| 7 | Power On/Off Key |
| 8 | Upward, in the first interface, the switch can be fault location mode (VFL) |
| 9 | Enter Key |
| 10 | Menu Key |
| 11 | Downward, In the first Interface, VFL switches between CW and HZ |
| 12 | Cancel Key |
| 13 | USB communication interface |
Features
Specification
| PON module: | PON power meter |
| 1310 upstream measurement | |
| Pass Zone(nm) | 1260nm～1360nm |
| MeasurementRange(dBm) | -40dBm～+10dBm |
| Output power(max) | 15dBm |
| Isolation@1490/1550(dB) | >40dB |
| Burst mode measurement error | <±0.5dB |
| 1490 downstream measurement | |
| Pass Zone(nm) | 1470nm～1505nm |
| MeasurementRange(dBm) | -40dBm～+10dBm |
| Output power(max) | 15dBm |
| Isolation@1310/1550(dB) | >40dB |
| 1550 downstream measurement | |
| Pass Zone(nm) | 1535nm～1570nm |
| MeasurementRange(dBm) | -40dBm～+10dBm |
| Output power(max) | 25dBm |
| Isolation@（1310/1490nm） | >40dB |
| Measurement Accuracy | |
| Connatural uncertainty(dB) | ±0.5dB |
| Linearity(dB) | ±0.1dB |
| Passing through insertion Loss(dB) | <1.5dB |
| General Information | |
| Detector Type | InGaAs |
| Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter |
| Fiber Type | SM 9/125um |
| Measurement Unit | dB/dBm/xW |
| Resolution (dB) | 0.01dB |
| Operation Voltage(V) | DC 3.3V～5.5V |
| Power Supply | 3pc1.5V battery |
| Continuously Operation time (h) | PON：90h |
| Operation Temperature(℃) | -10℃～60℃ |
| Storage temperature(℃) | -25℃～70℃ |
| Weight(kg) | 423g |
Question & Solution
| Problem | Possible Cause | Solution | ||
| No display on the LCD | 1 | Power Off | 1 | Press“ AUTOPower/Off Key ” to turn On |
| 1 | Lower Battery | 2 | Change the battery | |
| Inaccurate measurements | 1 | Optical interface is not clean | 1 | Clean the fiber optic interface |
| 2 | Improper fiber connection | 2 | Reconnect the fiber | |
