1. Overview of Erbium-Doped Fiber Amplifiers

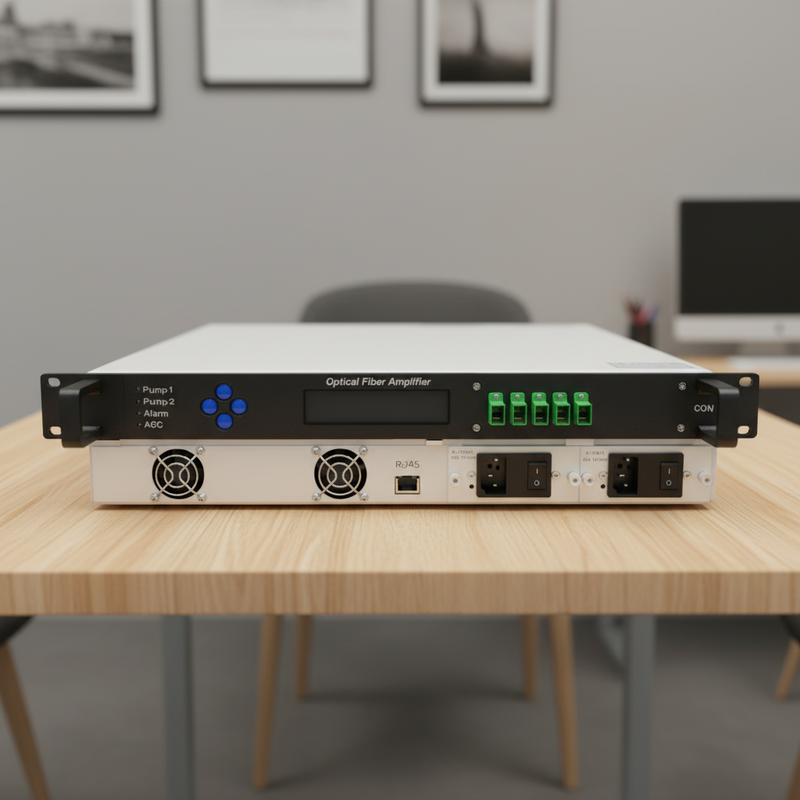

An Erbium-Doped Fiber Amplifier (EDFA) is a device that directly amplifies optical signals by using a fiber doped with erbium ions, leveraging their stimulated emission effect. Its emergence marked a revolutionary breakthrough in the field of fiber-optic communications, replacing the traditional low-efficiency “optical-electrical-optical” relay method. Baudcom, a leading provider of optical communication solutions, has developed advanced EDFA products like the 4 Ports High Power 1550nm WDM EDFA Amplifier to meet the evolving demands of modern networks.
Working Principle
The core component of an EDFA is the erbium-doped fiber. When pump light at specific wavelengths (typically 980 nm or 1480 nm) is injected into the fiber, the erbium ions absorb energy and transition from the ground state to an excited state. The excited erbium ions, upon encountering signal light in the 1550 nm band, undergo stimulated emission, producing photons that are coherent—same frequency, phase, and direction—as the signal light, thereby achieving coherent amplification of the optical signal.
Application Value in Optical Communication
Extending Transmission Distance: Amplifies optical signals directly along the transmission line, overcoming fiber attenuation and enabling ultra-long-distance transmission.
Increasing System Capacity: Supports Wavelength Division Multiplexing (WDM) technology, allowing simultaneous amplification of multiple wavelength channels, significantly boosting the transmission capacity of a single fiber.
Improving Signal Quality: Features high gain and low noise, effectively maintaining the signal-to-noise ratio of the optical signal.
2. Structures of Erbium-Doped Fiber Amplifiers
The performance of an EDFA is closely related to its structural design, which mainly includes the following types:
|
Structure Type |
Description |
Advantages |
Disadvantages |
|
Unidirectional Pumping |
Pump light and signal light are injected from the same end. |
Simple structure, low cost. |
Low pump light utilization efficiency, gain and output power are limited. |
|
Bidirectional Pumping |
A pump source is set at both the input and output ends of the signal. |
Pump light distribution is uniform, high gain, large output power. |
Complex structure, higher cost. |
|
Integrated |
All functional modules (pump source, coupler, erbium-doped fiber) are highly integrated. |
Small volume, good stability, low cost. |
Limited space for performance optimization, modules cannot be replaced independently. |
|
Modular |
Each functional module is independently manufactured and connected via fiber. |
High flexibility, easy to debug, maintain, and upgrade, better performance. |
Larger volume, relatively higher cost, presence of inter-module coupling loss. |
The key technologies in structural optimization design include the selection of the pump light source (wavelength and power), the design of the optical coupler (which affects pump efficiency), the optimization of erbium-doped fiber (length and doping concentration), and effective thermal management techniques. Baudcom's 4 Ports EDFA utilizes a sophisticated modular design with dual CPU architecture for separate control and communication processing, ensuring high stability and reliability (MTTF >150,000 hours). The product features hot-swappable redundant power modules (110/220VAC and 48VDC) for maximum operational continuity.
3. The key performance indicators of erbium-doped fiber amplifiers
Gain refers to the ratio of output optical power to input optical power, measured in decibels (dB). It is primarily influenced by pump power, the length of the erbium-doped fiber, and doping concentration. Through optimization, the gain of an erbium-doped fiber amplifier (EDFA) typically reaches between 10 and 30 dB.
The noise figure measures the additional noise introduced by the amplifier itself, ideally around 3 dB. The noise in an EDFA mainly originates from amplified spontaneous emission (ASE). By optimizing pump power and fiber parameters, the noise figure can be controlled within 3 to 6 dB.
Saturation output power refers to the output power at which the gain begins to compress, usually when it decreases by 3 dB. It determines the capacity of the EDFA to handle multi-channel or high-power signals and is a critical metric for wavelength-division multiplexing (WDM) systems. High-performance EDFAs can achieve saturation output powers of 10 to 30 dBm.
The spectral characteristics indicate that the gain of an EDFA within the 1550 nm window is not flat and exhibits gain peaks. This is vital for WDM systems, which require the use of gain-flattening filters to ensure uniform gain across all channels.
4. The application of erbium-doped fiber amplifiers in the field of optical communication
|
Application Field |
Role and Value |
|
Optical Fiber Communication Mainline |
Acts as an inline amplifier, enabling long-distance signal relaying, and is the core in constructing transoceanic and continental optical networks. |
|
Optical Fiber Sensing System |
Amplifies weak sensing signals, significantly improving the detection sensitivity and transmission distance of systems such as fiber optic gyroscopes and hydrophones. |
|
Fiber Laser |
Serves as the core gain medium or post-amplifier to produce high-power, highly stable laser output. |
5. Key technological advances and future trends
Key technological advances
Erbium-doped fiber materials: Continuous improvement of gain, power handling capability, and efficiency through compositional optimization (such as co-doping with aluminum or yttrium) and structural design (such as large mode field area fibers).
Pump light sources: Development towards higher efficiency, higher power, and integration, such as adopting multi-pump laser combining technology.
Device structures: Innovative designs (such as double-cladding fibers for high-power amplification) and hybrid integration technologies continuously optimize performance and reduce size.
Future development trends and challenges
Performance limits breakthrough: Pursuing lower noise figures, higher power conversion efficiency, and broader gain bandwidths.
Integration and miniaturization: Integrating EDFAs with WDM filters, optical switches, and other devices on a single chip, which is a key direction for realizing compact, low-cost optical communication systems.
Cost control: Reducing costs through process optimization and large-scale production to expand the application market.
6. Conclusion
Erbium-doped fiber amplifiers (EDFAs), with their high gain, low noise, and natural support for WDM systems, have become indispensable core components in modern optical communications. From long-distance trunk lines to high-speed data center interconnects, their applications establish the physical foundation for information transmission. Looking ahead, with the ongoing development of new materials, new structures, and integrated technologies, EDFAs will continue to evolve towards higher performance, smaller size, and lower costs, providing sustained momentum for the upgrading and expansion of global optical communication networks.
