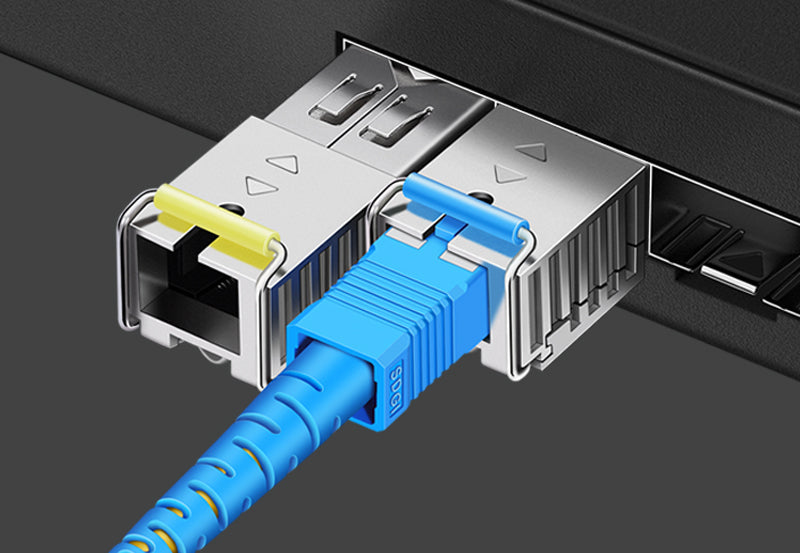

The SFP optical module is a small form-factor pluggable transceiver that can convert electrical signals into optical signals, enabling high-speed and long-distance data transmission. It features advantages such as compact size, low power consumption, and strong compatibility, making it a popular product in the field of fiber optic communications. At Baudcom, we offer a wide range of high-quality SFP optical modules designed to meet diverse networking needs.
1. What is a single-mode SFP optical module?
A single-mode SFP optical module is a type of optical module that uses a single fiber transmission mode, mainly employed for long-distance transmission. Its characteristics include supporting only single-fiber transmission, but it boasts advantages such as extended transmission distances and signal stability. In practical applications, single-mode SFP optical modules are generally used in large network environments such as metropolitan area networks and wide area networks, to meet the demands for high-speed and long-distance data transmission.
2. Advantages of single-mode SFP
Single-mode SFP optical modules perform exceptionally well in long-distance transmission due to their outstanding performance benefits. The use of single-mode fiber technology ensures clarity and stability of signals over extended distances, effectively reducing signal attenuation and dispersion phenomena. Additionally, single-mode SFP modules possess higher bandwidth capabilities, supporting faster data transfer rates to meet the requirements of large capacity data communications.
3. What is a multimode SFP optical module?
A multimode SFP optical module is an optical transmission component that adopts multimode fiber technology and supports hot-swappable functions. It possesses multiple light propagation paths capable of working with multimode fiber to achieve efficient data transfer within local area networks. Due to its stable performance and compatibility, multimode SFP optical modules are widely used in short-distance transmission scenarios such as data centers and internal enterprise networks.
4. Advantages of multimode SFP
Multimode SFP optical modules demonstrate strong competitiveness in short-distance transmission due to their unique advantages. The most notable benefit is their ability to work with multimode fiber, enabling maximum transmission distances of up to 550 meters or 860 meters, far exceeding the transmission limits of single-mode SFP.
5. The difference between single-mode SFP and multimode SFP
Transmission Distance:
The transmission distance of single-mode SFP is much greater than that of multimode SFP. This is because single-mode fiber has a thinner core, resulting in less signal loss during transmission, thus enabling long-distance transmission. Most can relay signals over a distance of up to 10 kilometers using single-mode fiber cables. In contrast, multimode fiber has a thicker core, which causes greater signal loss during transmission, limiting the transmission distance. The maximum transmission distance for multimode fiber ranges between 300 meters and 550 meters. This shorter distance is due to the cable grading of multimode fiber cables.
Bandwidth:
The bandwidth of single-mode SFP is generally higher than that of multimode SFP. The thinner core of single-mode fiber results in less dispersion, which is conducive to high-speed signal transmission. Conversely, the thicker core of multimode fiber causes greater dispersion, making high-speed signal transmission prone to distortion.
Cost:
The cost of single-mode SFP is relatively higher, mainly because the manufacturing cost of single-mode fiber is higher, and the technology requirements for transmitters and receivers in single-mode optical modules are more demanding. Multimode SFP has a comparatively lower cost, making it more suitable for short-distance, low-cost application scenarios.
Application Scenarios:
Single-mode SFP is suitable for long-distance, high-speed fiber optic communications, such as telecommunications transmission and metropolitan area networks; multimode SFP is suitable for short-distance, low-speed fiber optic communications, such as data centers and enterprise networks.
6. How to distinguish between single-mode fiber and multimode fiber?
The color coding of single-mode SFP optical modules typically includes blue, yellow, or purple. Blue is used for 1310nm optical modules, yellow for 1550nm optical modules, and purple for 1490nm optical modules. The fiber optic patch cords compatible with single-mode SFP optical modules are usually yellow. The color coding for multimode SFP optical modules includes black labels and arrows, as well as orange fiber optic patch cords.
7. How to distinguish between single-mode and multimode fiber patch cables?
In addition to the color coding of clips, the fiber patch cables can also be identified by their color. The patch cables for single-mode fiber are yellow; for multimode fiber, the patch cables are orange.
8. How to choose cost-effective optical modules
When selecting optical modules, cost performance is a key consideration. First, clarify the application scenarios and transmission distance requirements; single-mode is suitable for long-distance transmission, while multimode is suitable for short-distance. Second, consider fiber compatibility to ensure the optical module matches the existing network infrastructure.
Furthermore, compare the performance indicators and prices of different brands and models, and choose products that meet the budget while ensuring reliable performance. Baudcom offers a wide selection of both single-mode and multimode SFP modules that are competitively priced, fully compatible, and backed by professional technical support. Choose Baudcom for high-performance, cost-effective fiber optic solutions.
