Unlock the full potential of your 10G Fiber Internet with our plug-and-play XGS-PON ONU Stick! Simply insert this 10G XGS-PON ONU/ONT SFP+ Stick into a compatible switch or router to get a direct, high-speed fiber connection—no bulky external modem required.
Achieve symmetric 10Gbps speeds for lightning-fast uploads and downloads, perfect for 4K/8K streaming, competitive gaming, and running a home server or small office. This stick is hot-pluggable and designed for easy, tool-free installation.

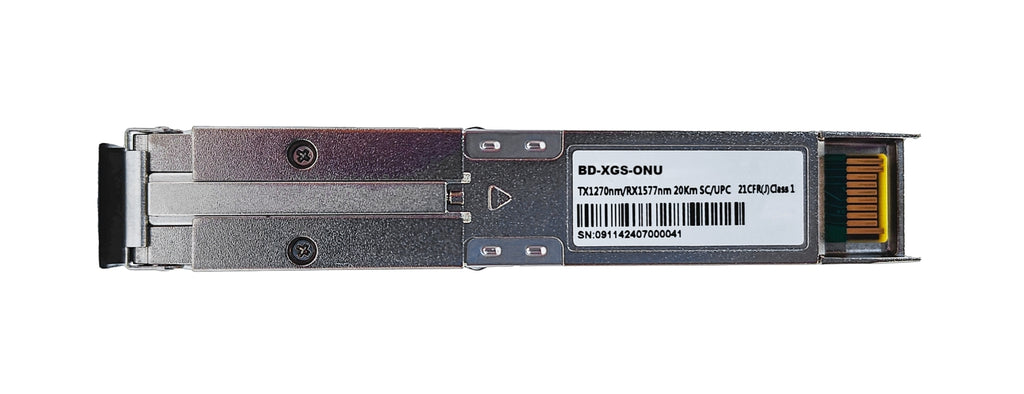

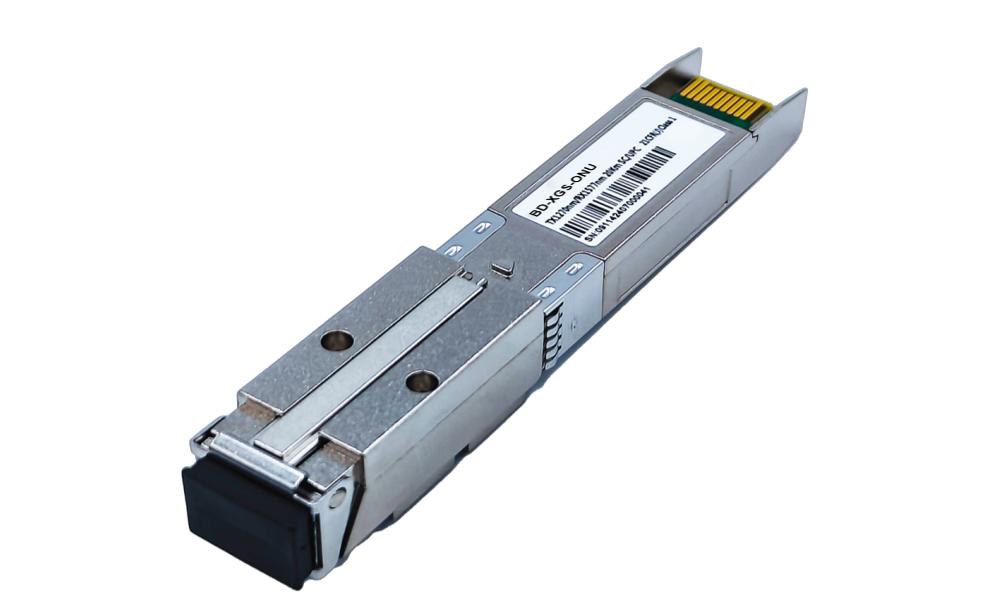

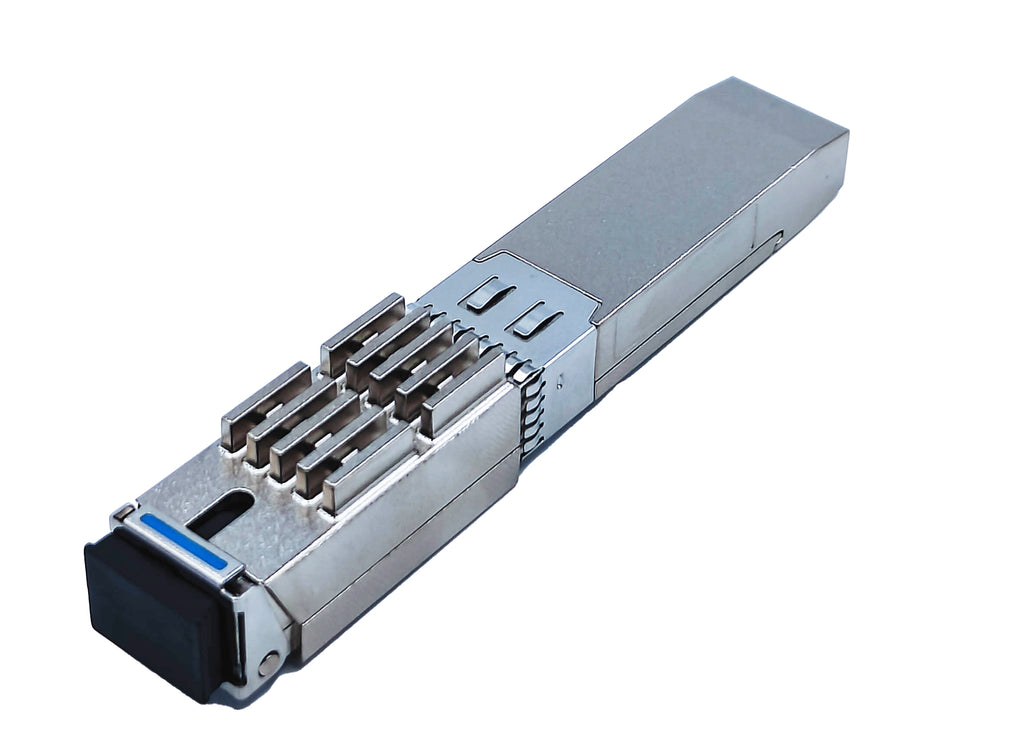

10G XGS-PON ONU/ONT SFP+ Stick Features
l Single fiber bi-directional data links symmetric TX 9.953 Gb/s / RX 9.953 Gb/s with MAC function
l SFP package with SC/UPC/APC receptacle
l Single 3.3 V power supply
l Hot-pluggable capability
l High power 1270 nm DML DFB LD and high sensitivity 1577 nm APD
l Support 20 km transmission distance with SMF
l CML compatible data input/output interface
l Low power dissipation < 2.5 W
l Low EMI and excellent ESD protection
l Digital diagnostic monitor interface
l RoHS-6 compliance
l Case temperature range: Industrial: -40 °C to 85 °C
l Support of GPON/XGS-PON/NGPON2 standards
l 256 GEM/XGEM ports, 64 T-CONTs or 16 LLIDs
l Carrier Grade QoS Engine
l Advanced loopback and diagnostic capabilities
l Supports Synchronous Ethernet (SyncE)
Applications
l Residential home gateway
l Network switch/router, VDSL MDU, and G.fast DPU
l Mobile backhaul
Standard
l Complies with ITU-T G.987.2
l Complies with ITU-T G.9807.1, G.9807.2
l ITU-T G.988 OMCI L2 MAC Bridge (Up to 64 L2 bridges)
l G.8275/Y.1369/IEEE 1588v2
l IEEE 802.1ag and ITU-T Y.1731 Ethernet OAM delay & loss measurement hardware support
Compatible Equipement
1)OLT
ZTE、HUAWEl、NOKlA and some main brands
2)Switch
HUAWEI、H3C、TP-LINK、ClSco and so on
The list of compatible equipments are continuously being updated.
Specification
|
Transmitter Optical Characteristics
|
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Note
|
|
Average Launch Optical Power
|
Pout
|
4
|
|
9
|
dBm
|
|
|
Power-OFF Transmitter Optical
|
Poff
|
|
|
-45
|
dBm
|
|
|
Extinction Ratio
|
ER
|
6
|
|
|
dB
|
|
|
Centre Wavelength
|
lc
|
1260
|
1270
|
1280
|
nm
|
|
|
Spectral Width (-20 dB)
|
Dl
|
|
|
1
|
nm
|
|
|
Side Mode Suppression Mode
|
SMSR
|
30
|
|
|
dB
|
|
|
Eye Diagram
|
|
Compliant With802.3av
|
|
Receiver Characteristics
|
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Note
|
|
Optical Center Wavelength
|
lc
|
1575
|
1577
|
1580
|
nm
|
|
|
Sensitivity
|
SEN
|
|
|
-29
|
dBm
|
|
|
Receiver Overload
|
OL
|
-9
|
|
|
dBm
|
|
|
LOS Assert
|
SDA
|
-40
|
|
|
dBm
|
|
|
LOS De-Assert
|
SDD
|
|
|
-29
|
dBm
|
|
|
LOS Hysteresis
|
|
0.5
|
|
5
|
dB
|
|
|
Data Output Swing Differential
|
Vout
|
300
|
|
1200
|
mV
|
|
|
LOS
|
High
|
2.0
|
|
Vcc
|
V
|
|
|
Low
|
0
|
|
0.8
|
V
|
|
Order Information:
|
BD-XGS-ONU-U
|
XGS-PON ONU stick with SC/UPC Receptacle
|
|
BD-XGS-ONU-A
|
XGS-PON ONT stick with SC/APC Receptacle
|
