Description
Description:

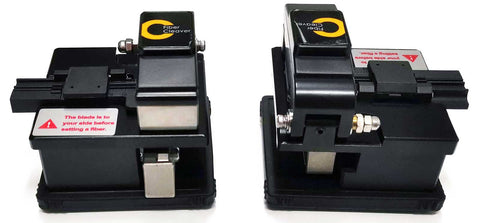

The FC-7S fiber cleaver is high precision at a low cost, suitable for any job. Compact and ergonomic, precise and durable, the fiber cleaver is perfect for all cleaving applications from Splice on Connectors to an emergency fiber restoration. The standard FC-7S cleaves 250um and 900um fibers with a 3-step process that will fulfill any cleaving requirement. The fiber cleaver is very popular in fiber construction project because of its high quality and good price.
Specification
|
Product model |
FC-7S High-Precision-Fiber-Cleaver |
|
optical fiber cladding diameter |
125μm |
|
Fiber coating diameter |
0.25mm-0.9mm |
|
Coated outer diameter |
Single core |
|
The length required to be removed before optical fiber cutting |
Fiber cutting length ≥18mm |
|
Fiber cutting length |
5-20mm |
|
Fiber cutting angle |
≤0.8° |
|
Blade life |
48000（1000timesx16 positionx3high） |
|
Size |
63Wx65Dx60H(mm) |
|
Weight |
280g(coffee color)/180(black color) |
|
Fxture |
Three in one multifunction jip |
