2-wire G.SHDSL modem with E1 or V.35 V.24

The BD-MSDSL 2-wire modem is a robust, versatile solution designed for high-performance, long-range symmetric data transmission. Here's a structured breakdown of its key features and applications:

2-wire modem Key Features

1. Technology & Standards:

   • G.SHDSL Compliance: Adheres to ITU G.991.2 (SHDSL) and G.994.1 (handshake protocol), ensuring reliable, standardized communication.

   • TC-PAM16 Modulation: Uses 16-level Trellis Coded Pulse Amplitude Modulation to enhance data efficiency and distance (up to 4km at 2304 Kbps over 2-wire).

2. Interfaces:

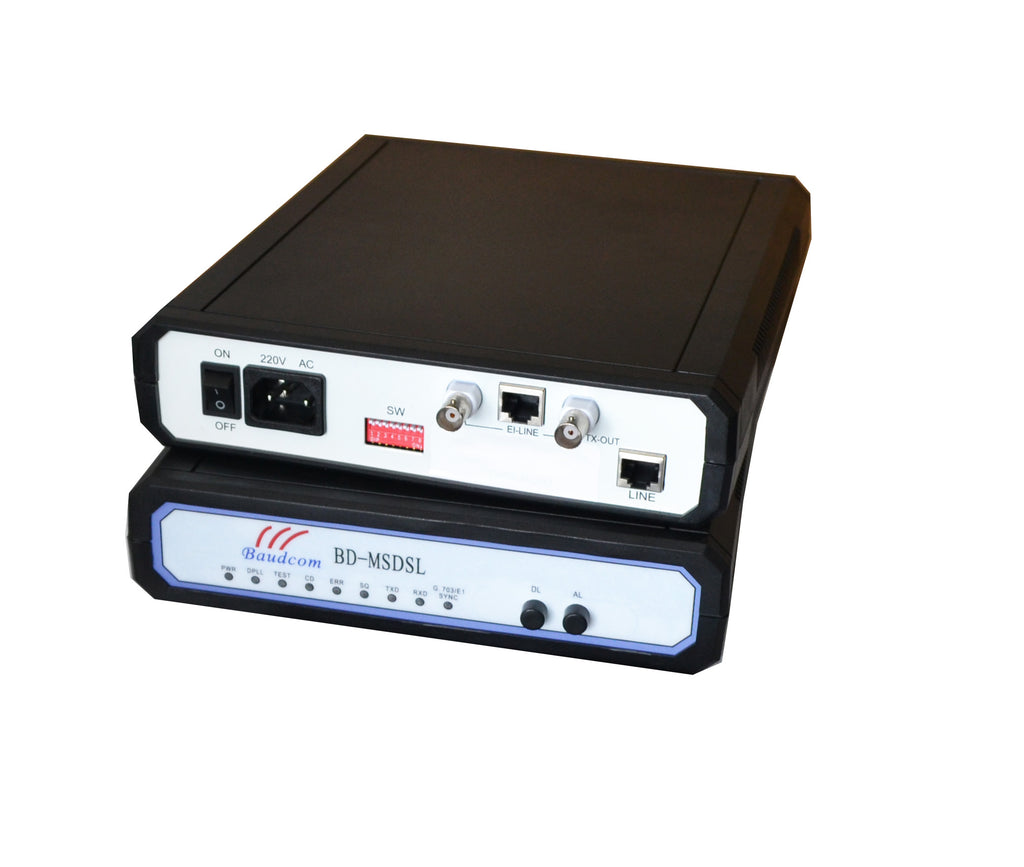

   • E1 (2.048 Mbps): Supports both BNC (75Ω coaxial) and RJ45 (120Ω twisted pair), accommodating legacy and modern infrastructure.

   • V.35/V.24 (RS-232): Compatible with high-speed data equipment (e.g., routers) and legacy serial devices (e.g., industrial systems).

3. Performance:

   • Full-Duplex Operation: Achieves symmetric speeds over a single pair using echo cancellation.

   • Self-Learning Capability: Automatically adjusts data rates and line settings for optimal performance in varying conditions.

4. Design & Usability:

   • Low Operational Cost: Eliminates need for repeaters up to 4km, reducing infrastructure costs.

   • Plug-and-Play Setup: Simplified deployment with minimal configuration.

Applications

• Telecom/Enterprise: Connects PBX systems, remote offices, or E1 converter-based voice/data networks.

• Industrial/SCADA: Links sensors, PLCs, or control systems via V.35/V.24 in utilities, transportation, or manufacturing.

• Surveillance: Supports long-distance CCTV or data backhaul in urban/rural areas.

Considerations

• Impedance Matching: Ensure proper termination E1 converter(75Ω BNC vs. 120Ω RJ45) to prevent signal reflection.

• Line Quality: Adaptive rate adjustment maintains connectivity but may reduce speed in poor conditions.

2-wire GSHDSL modem Competitive Edge

• Interface Flexibility: Dual E1 converter port and V.35/V.24 support broadens compatibility.

• Resource Efficiency: TC-PAM16 maximizes bandwidth use, lowering spectral footprint.

*Comply with ITU G.SHDSL standard 2-wire 2304Kbps MSDSL modem
*3.5km-9.7km transmitting distance in copper lines with 24AWG(0.5mm) and 26 AW (0.4mm)
*For data interface: V.35,V.24/RS232 and E1/G.703 optional, Rate support:N*64Kbps(1≤N≤36)

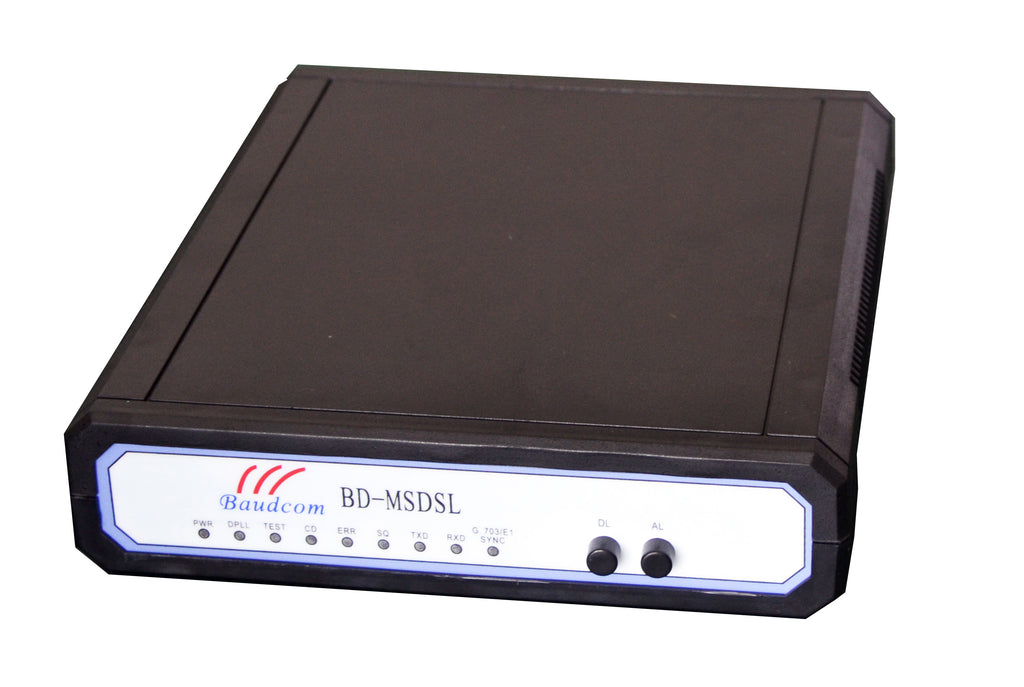

*Not need to be set rate of slave modem, It follows the rate of master modem automatically. So it can carry out the administration of the remote equipments in networks *Comprehensive LED indicators on front panel,convenient for the diagnosis of equipment working state
*High-powered TC-PAM line coding technique
*Low operating cost, simple manipulation, convenient use,
*Provide analog and digital loopback test
*Support Stand-Alone and Rock-Mount type optinal
*16-slots,elaborate cooling design and two redundant power supply
*-48V DC & 220V AC power supply optional

Data Interface 2 (V.35, V.24/RS232 interface)

Comply with V.35,V.24/RS232 standard
Physical connector :DB25 female jack,V.35 via external adapter
Transmission rate: N*64Kbps(N=1~36);V.24(64K; 128K;)
Work mode: DCE

E1 converter modem Power supply

working voltage range wide, good

anti-disturb and Isolation, work stable

option I – DC-48V,range DC-36V~DC-72C

option II – AC220V,range AC165V~AC240V

Power Consumption:&nbsp <=5 Watts

Environment condition

Operating temperature:  0C~+50 C

Storage temperature:   -20 C~+70 C

Relative temperature:95% (uncondensed)

E1 converter modem Dimension

• 225mm(L)x145mm(W)x 40mm(H)
