Baudcom new G.703/G.704 toolless insulating displacement connecting (IDC) module baluns are ideal for carriers seeking a cost-effective, space-efficient, and proven method of impedance matching 75ohm coax to 120ohm single-conductor connections. The baluns provide transparent bi-directional signal conversion with no AC or battery power required.

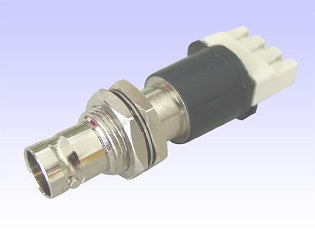

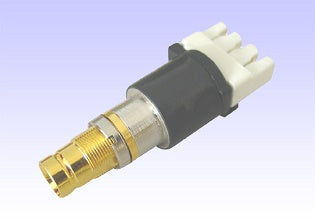

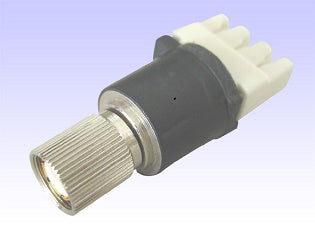

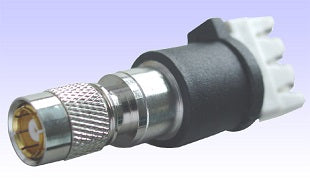

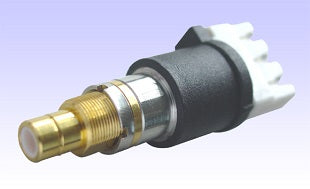

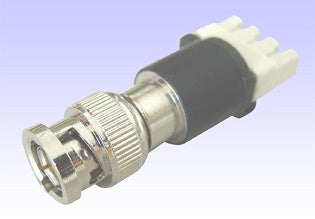

Various industry standard types of coaxial connectors (75 Ohm) are available including male and female combinations of BNC, 1.6/5.6, 1.0/2.3, and Type 43. The 3-pole toolless IDC connector used for wrapping single-conductor connections (120 Ohm) utilizes a slit in the cable anchor to allow the cable to be inserted after termination. The toolless IDC connector is also offset so that a cable can be positioned between baluns on the DDF/patch panel as required. The toolless IDC connector is clearly labeled A, B, and G (Ground) to make installation more convenient.
![](https://cdn.shopifycdn.net/s/files/1/0566/0033/0406/files/6_253bc2b6-1bde-428f-8129-10d3876daff4_480x480.jpg?v=1647762538)
![](https://cdn.shopifycdn.net/s/files/1/0566/0033/0406/files/5_480x480.jpg?v=1647762525)
![](https://cdn.shopifycdn.net/s/files/1/0566/0033/0406/files/4_8f347059-ec93-431a-ab57-9e9492a6ea9d_480x480.jpg?v=1647762516)
![](https://cdn.shopifycdn.net/s/files/1/0566/0033/0406/files/3_8b2e7e29-a348-495a-8b2c-86b8d688eb78_480x480.jpg?v=1647762455)
![](https://cdn.shopifycdn.net/s/files/1/0566/0033/0406/files/2_50e94ef8-180c-4137-b820-5f8d6c6e48a9_480x480.jpg?v=1647762443)
![](https://cdn.shopifycdn.net/s/files/1/0566/0033/0406/files/1_4613746b-ad9f-4737-8cef-5fb221ccbaad_480x480.jpg?v=1647762392)
Features & Benefits
-
Convert 75 Ohm Coax to 120 Ohm Twisted Pair–Resolves impedance mis-match between twisted pair equipment and coax cabling
-
Ultra-miniature size–Provides maximum density when installed into a 19-inch (48.3cm) panel
-
Industry Standard Coax Connectors–A host of coax connectors including BNC, 1.6/5.6, 1.0/2.3 and Type 43 are available
-
Low Insertion Loss–Fully meets ITU-T (CTR-12) G.703 standards
-
No Power Required–Operation is transparent to data, no AC/DC power is required
