Description

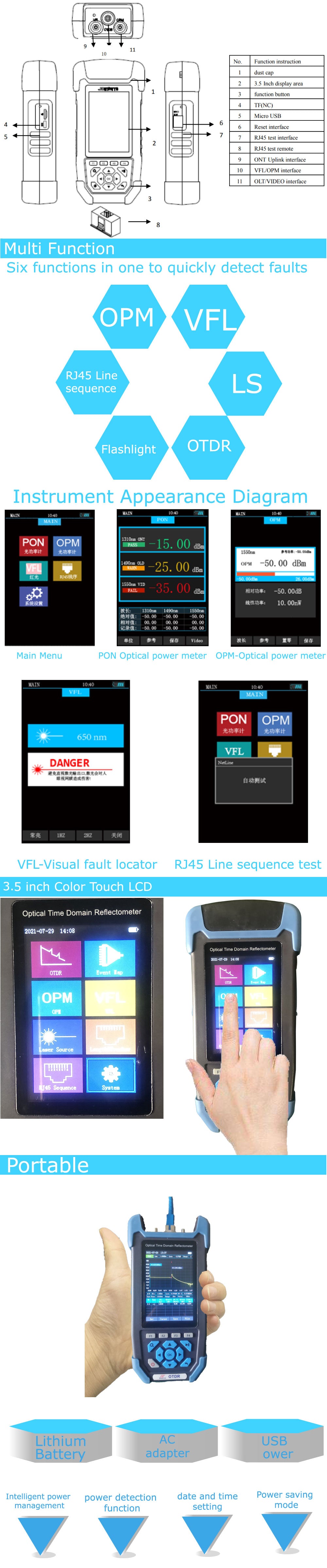

BD-PON-JW3，The PON optical Power Meter is 3.5-inch TFT color screen type light meter developed by Baudcom according to the customer’s requirement and the characteristics of domestic and foreign optical power meters. Using brand new encapsulation shell design, shockproof and fall-proof, feel in line with ergonomics. The instrument is highly integrated with PON optical power meter, wide-range optical power meter, VFL, line sequence calibration and other functions, and can record and upload the instrument test data, The fiber power meter is widely used in the construction, inspection and maintenance of CATV and other optical line projects. As the fiber optic power meter, we supply the power optical meter to global.
Features
Specification
| PON power meter module | |
| Wavelength test(nm) | 1310/1550nm |
| Dynamic range（dBm） | 24/22dB |
| Insertion Loss （dB） | ≤1.5 |
| display resolution（dB） | 0.01 |
| Interface type | (FC/SC)/PC |
| OPM Module | |
| detection range (dBm) | +10～-70 / +26～-50 |
| Uncertainty (dB) | ≤0.5 |
| calibration wavelength（nm） | 1310/1490/1550/1625 |
| test unit | dBm、dB、xW |
| linearity(dB) | ≤0.1 |
| Measurement accuracy (dB) | 0.01 |
| VFL red light module | |
| wavelength | 650±20 |
| modulation frequency (Hz) | Lighting Form, 1Hz，2Hz |
| Optical Power Output（mW） | ≥1 |
| RJ45 Line sequence | One-click automatic testing |
| Others | |
| display | 3.5-inch TFT color screen |
| power supply mode | Rechargeable 3.7V lithium battery /Micro USB |
| communication interface | Micro USB |
| Battery Operating Time（h） | ≥ 20 |
| operating temperature℃ | -20～+50 |
| storage temperature℃ | -30~+70 |
| relative humidity | 0～95%（RH） |
| weight (g) | 395 |
| dimension（mm） | 188×88×44 |
