Description
Model: BD300

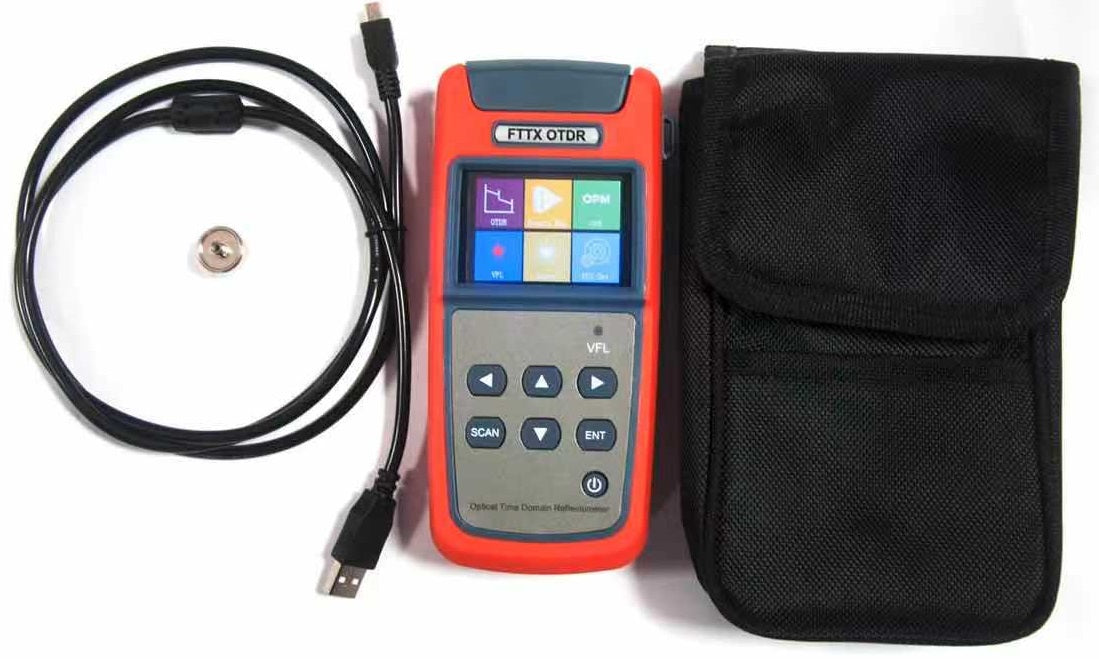

BD300 Mini otdr is the most portable test instrument in the industry which adopts the OTDR technical principles. The optical time domain reflectometer integrates the powerful analysis software, which enables the otdr fiber ranger detect fiber faults location more accurate and easier.

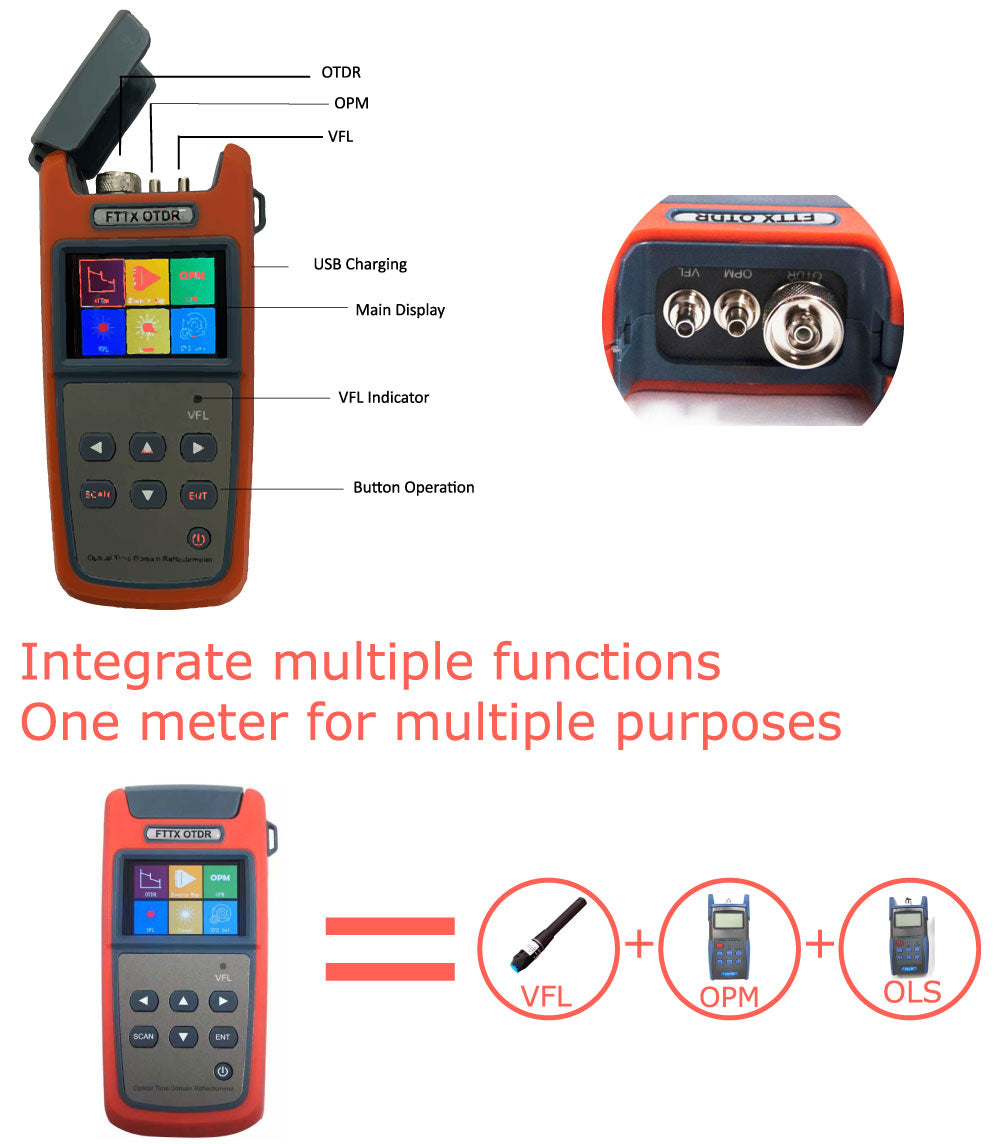

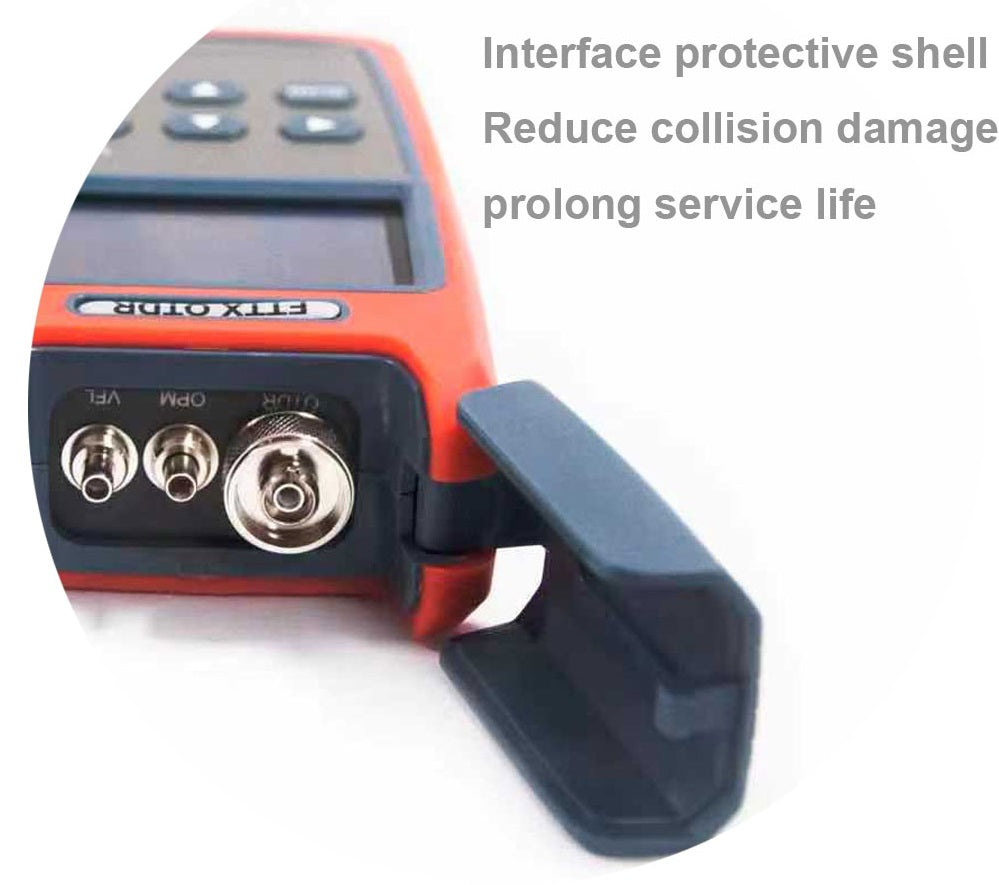

Built-in the visual fault locator, the fiber otdr can easily find the breaks, bends, splices, faulty connectors, and other causes of signal loss.

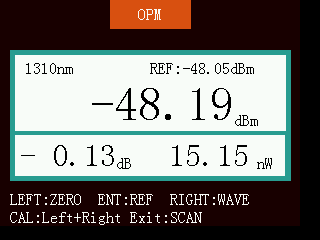

Opitcal power meter and optical laser source also be integrated into the optic time domain reflectometer.
Learned from the operation mode of tablet computer and smart mobile phone, BD300 series fiber optic otdr has simple operation interface and Windows-like GUI, and this ensures a short learn curve for the customer. The fttx otdr is small, lightweight, portable, rugged and durable, and is more suitable for outdoor environment.
Features
|
OPM
|
|

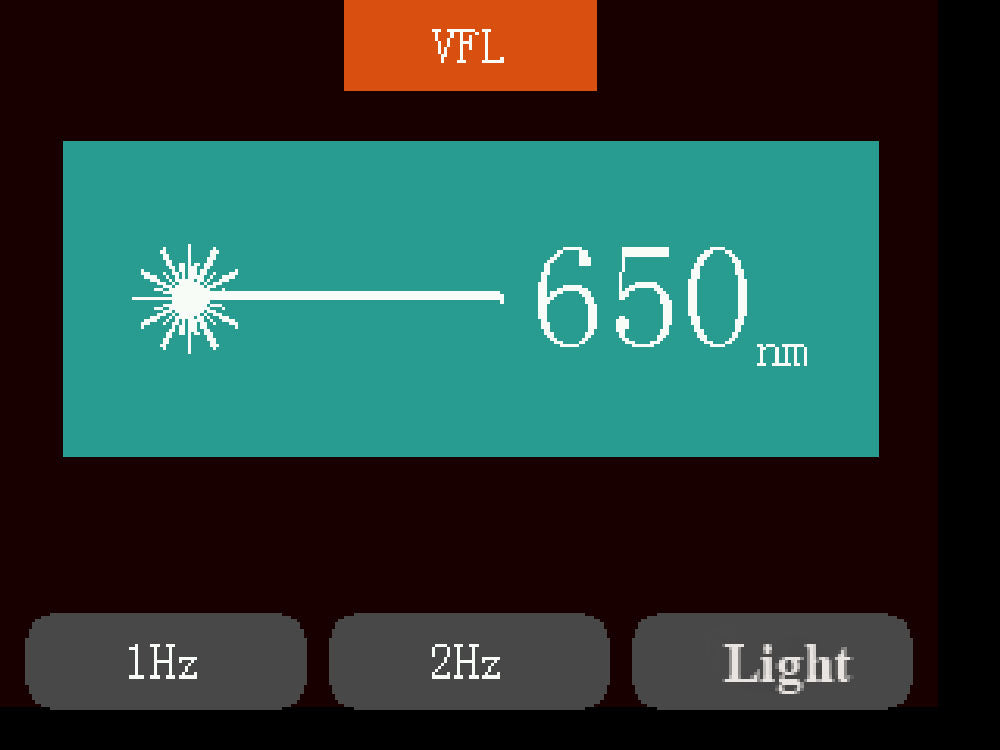

VFL Function Connect fiber to VFL port, you could see optical light(650nm) in breakpoint or fiber end-face.
|
|

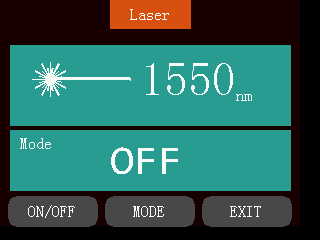

Laser Source
|
*Portable, rugged, lightweight; Easy to use.
*More accurate testing results and better repeatability.
*Automatic Pulse Width Control design to ensure a convenient operation.
*Easy to identify the faults location.
*Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.
*Dust, water and shock proof, designed for field use.
*Long battery life, up to 5000 measurements operation.
*2.6 inch screen, data saves in SOR format.
|

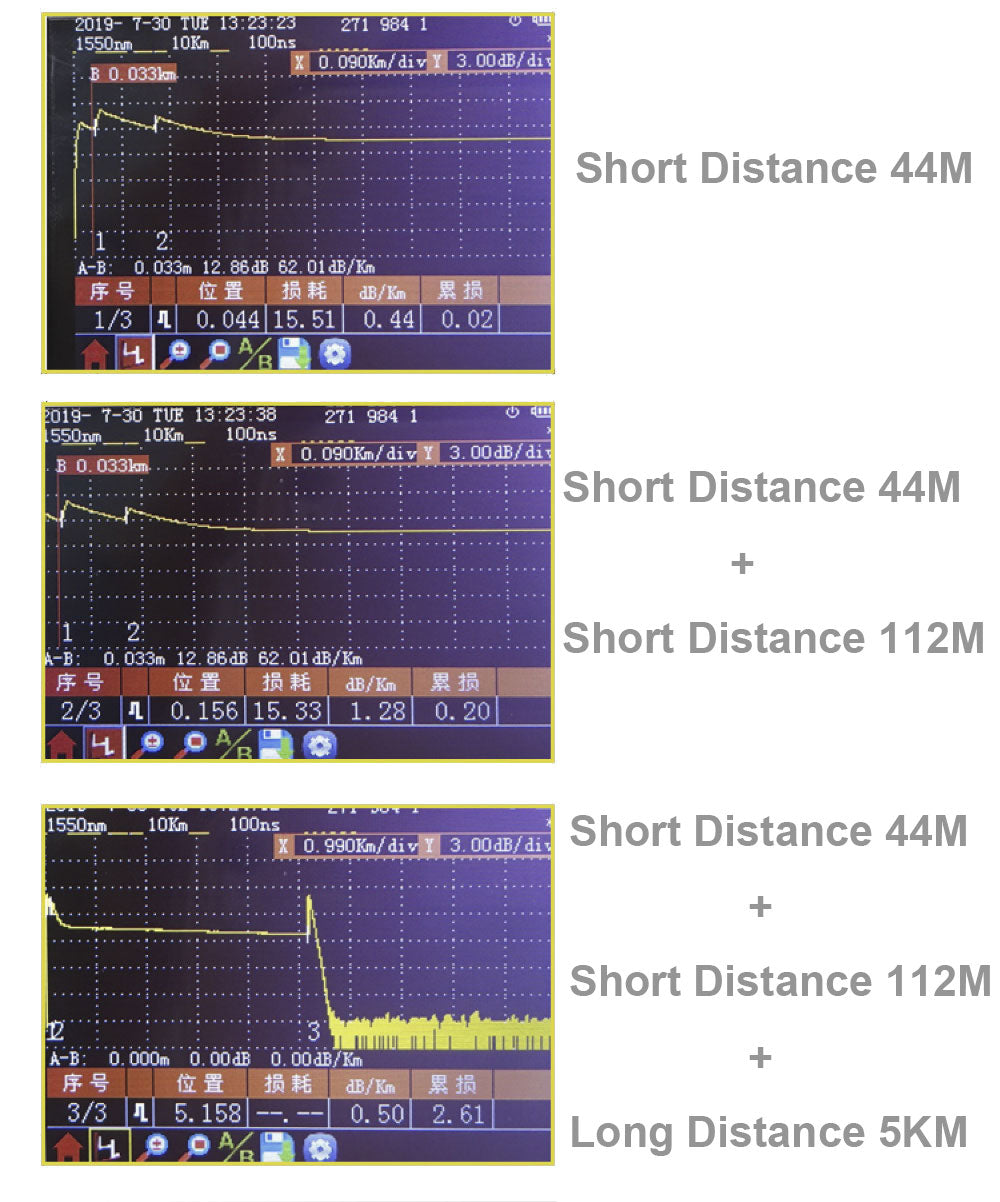

Presentation of measured curve
|
iLOM(Event Map)

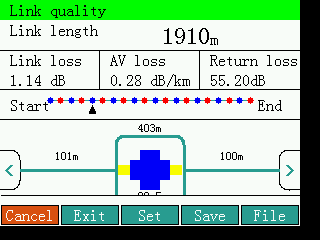

The function can be tested automatically by one key, and the information of the length of the link,the type of event point and the position of breakpoint can be displayed in a graphical form. The result is easy is clear and easy to understand.
| iLOM(Event Map) | |
| Power Supply | 3pcs of Dry battery |
| Battery Work time | ≥2000 times measure |
| Save Data | ＞500 |
| Work Temperature | -5~40℃ |
| Save Temperature | -10~60℃ |
| Humidity | 0~85%（no condensation） |
| Net weight | 300g |
Specification
| Model | BD300 OTDR |
| Wavelength | 1550nm |
| Type of fiber | 9/125um SM Fiber |
| Connector | FC, SC/PC |
| Dynamic Range | 22dB |
| Pulse Width | 5ns~ 8000ns，Auto |
| Measurement | m |
| Event blind zone | 3m |
| Attenuation blind | 10m |
| Range accuracy | ±（1m+2×10-4×distance） |
| OPM | -50~+26dBm |
| 850/1300/1310/1490/1550/1625nm | |
| VFL | ≥10mW |

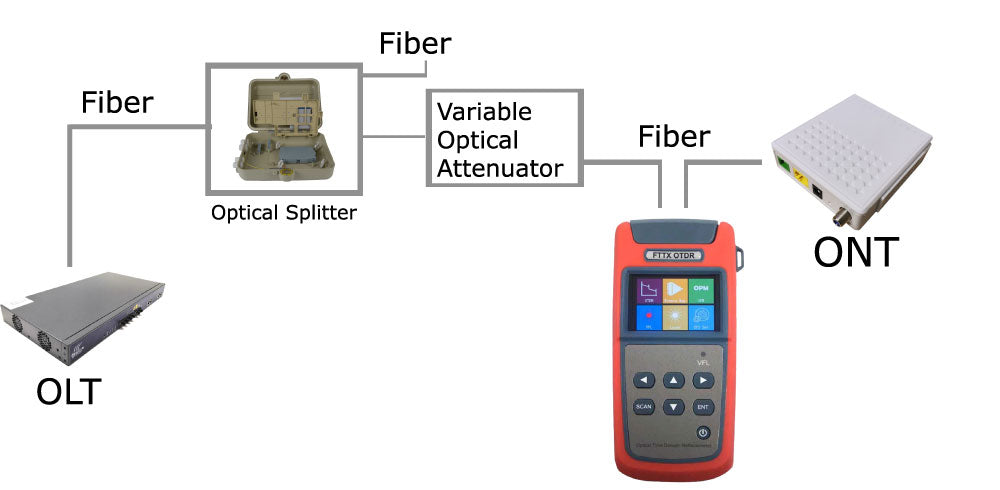

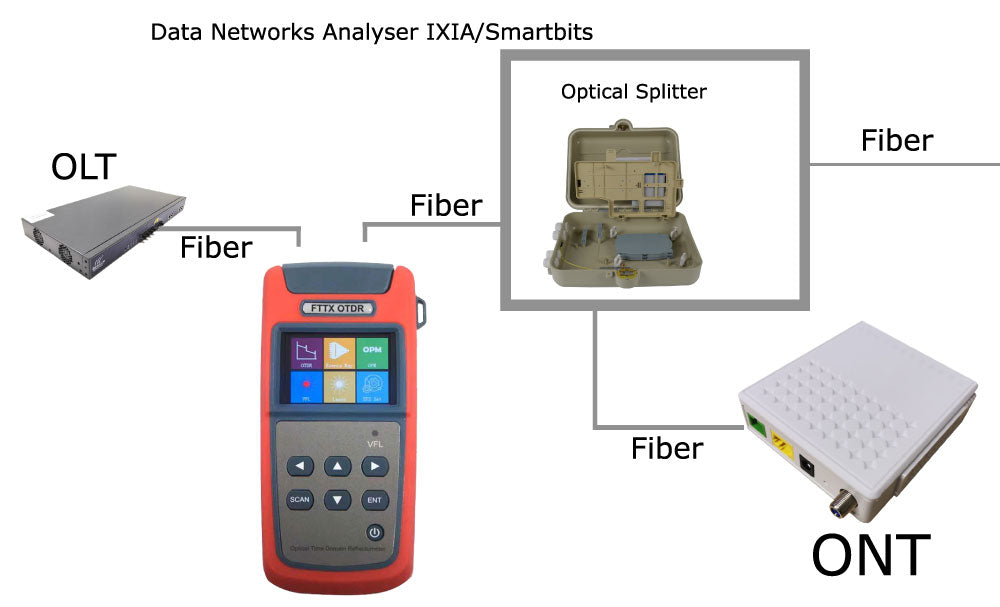

Applications
- The installation and maintenance for AN(access network) optical cables
- The installation and maintenance for LAN(local area networks)
- The installation and maintenance for FTTX
- The installation and maintenance for cable TV networks
- The installation and maintenance for APON(optical networks)
- The installation and maintenance for private optical fiber networks
