Description
BD330 Mini Pro OTDR is apply to FTTx and access network construction and maintenance, to test fiber breakpoint , length, loss and input light automatic detection, automatic test by one key. The otdr tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shockproof and dropproof. The fiber otdr also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source , Optical power meter, Visual fault locator , cable sequence proofreading, cable length measurement and lighting functions. The optical time domain reflectometer could quick detection of breakpoint, universal connector, .600 internal storage, TF card, USB data storage and builtin 4000mAh lithium battery, USB charging .It is a good choice for long term field work.
| 1 | Reset Button |
| 2 | RJ45 Interface |
| 3 | TF Card port |
| 4 | Micro USB |
| 5 | 3.5 inch Color LCD |
| 6 | Fuction Keys |
| 7 | VFL Port |
| 8 | OTDR/LS Port |
| 9 | 9 OPM port |
Features

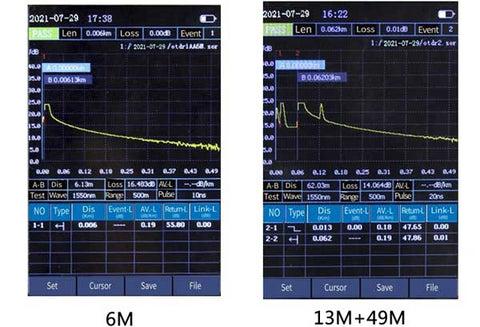

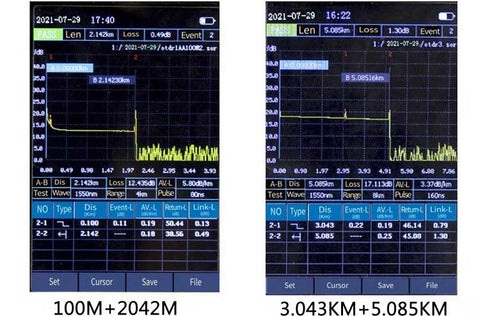

Practical Tasting
Technical Specifications
|
Mini-Pro OTDR |
||
|
Model |
BD 330 |
|
|
Wavelength |
1310nm/1550nm±20nm |
|
|
Fiber Type |
G.652 SM Fiber |
|
|
Dynamic Range |
24dB/22dB |
|
|
Event Blind Zone |
3m |
|
|
ATT Blind Zone |
8m |
|
|
Test Range |
500m~60km |
|
|
Pulse Width |
3ns~10us |
|
|
Ranging Accuracy |
±（1m+Sampling Interval +0.005％×Test Distance） |
|
|
Loss Accuracy |
±0.2dB/dB |
|
|
Sampling Points |
16k~128k |
|
|
Sampling Resolution |
0.05m~8m |
|
|
Reflection Accuracy |
±3dB |
|
|
Data Storage |
Internal：≥600；External：TF Card |
|
|
Laser Safety Level |
Class Ⅱ level |
|
|
File Format |
SOR Standard File Format |
|
|
Connector |
FC/UPC（Interchangeable SC、ST） |
|
|
OPM |
||
|
Wave Range |
800nm~1700nm |
|
|
Interface Type |
Universal Joint FC/SC/ST |
|
|
Test Range |
-50dBm～+26dBm |
|
|
Uncertainty |
±5% |
|
|
Frequency Identification |
CW/270/330/1k/2kHz |
|
|
Calibration Wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|
|
LS |
||
|
LD Type |
FP-LD |
|
|
Output Wavelength |
1550nm±20nm |
1310nm/1550nm±20nm |
|
Output Power |
≥-5dBm |
|
|
Modulation Frequency |
270/330/1k/2kHz |
|
|
Stability |
CW，±0.5dB/15min（Test after15mins of preheating） |
|
|
Connector |
FC/UPC（Interchangeable SC、ST） |
|
|
VFL |
||
|
Work Wavelength |
650nm±20nm |
|
|
Output Power |
≥10mW |
|
|
Mode |
CW/1Hz/2Hz |
|
|
Connector |
FC/SC/ST |
|
|
RJ45 Cable Length Measurement |
||
|
Test Range |
300m |
|
|
Other Parameters |
||
|
Dispaly |
3.5 inch Color LCD |
|
|
Data Interface |
Micro USB |
|
|
External Storage |
TF Card |
|
|
Power Supply |
Polymer Li-battery：3.7V，4000mAh Power Adapter：5VDC，2A |
|
|
Battery Life |
Standby＞20h；Measuring Time＞12h |
|
|
Operating Temperature |
-10℃～+50℃ |
|
|
Storage Temperature |
-40℃～+70℃ |
|
|
Relative Humidity |
0～95％Non Condensing |
|
|
Weight |
≤350g |
|
|
Dimension |
173mm×82mm×37mm |
|
|
Functions： Orange，OTDR/OPM/LS/VFL/RJ45 Sequence/Flashlight |
||
Note：
1.Test Temperature25℃±2℃，Maximum pulse width，Average time≥3min.
2.Test conditions of Event Blind Zone are minimum range,minimum pulse width,reflection loss of optical end≥45dB,typical value.
Question: Can BD330 multi-function OTDR support Spanish?
Answer: Yes, BD330 multi-function OTDR can support Spanish. As this OTDR has been purchased and used by many customers around the world, some other languages will be updated soon.

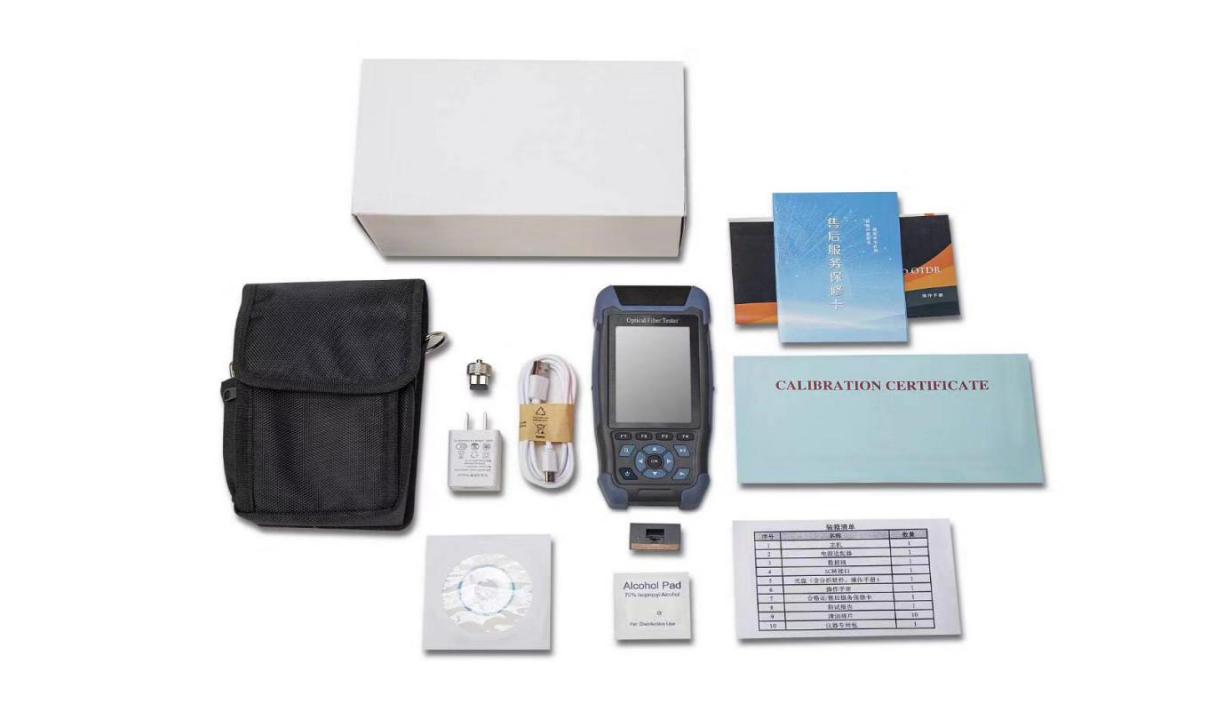

Configuration List
