Description
Description:

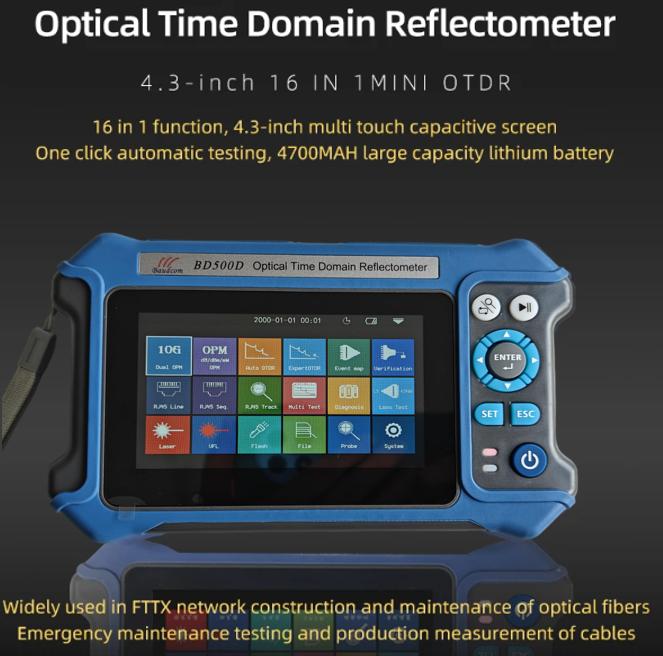

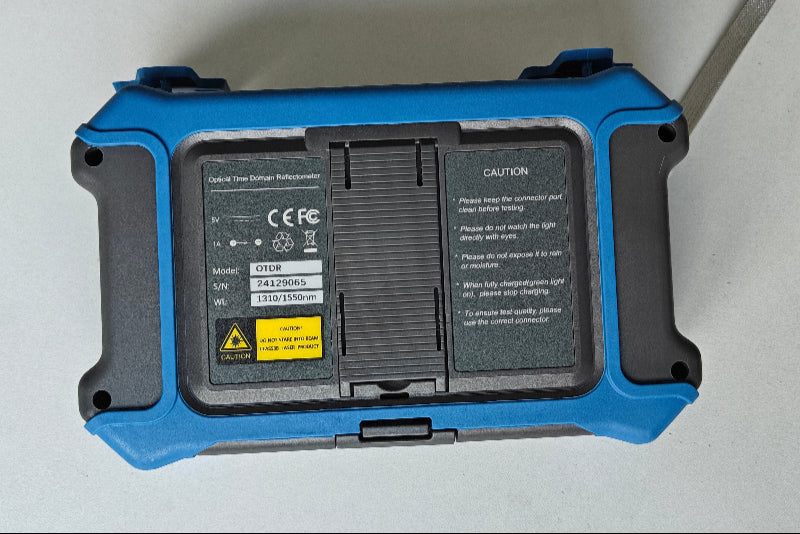

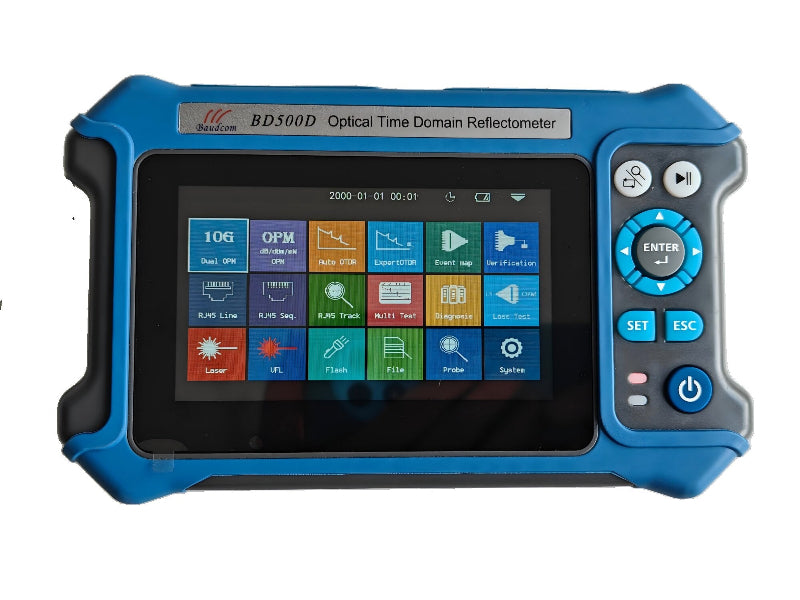

The BD500D OTDR is your all-in-one fiber optic testing solution. With a 28dB dynamic range and support for 1310/1550nm wavelengths, it quickly identifies fiber breaks, splices, and signal losses.

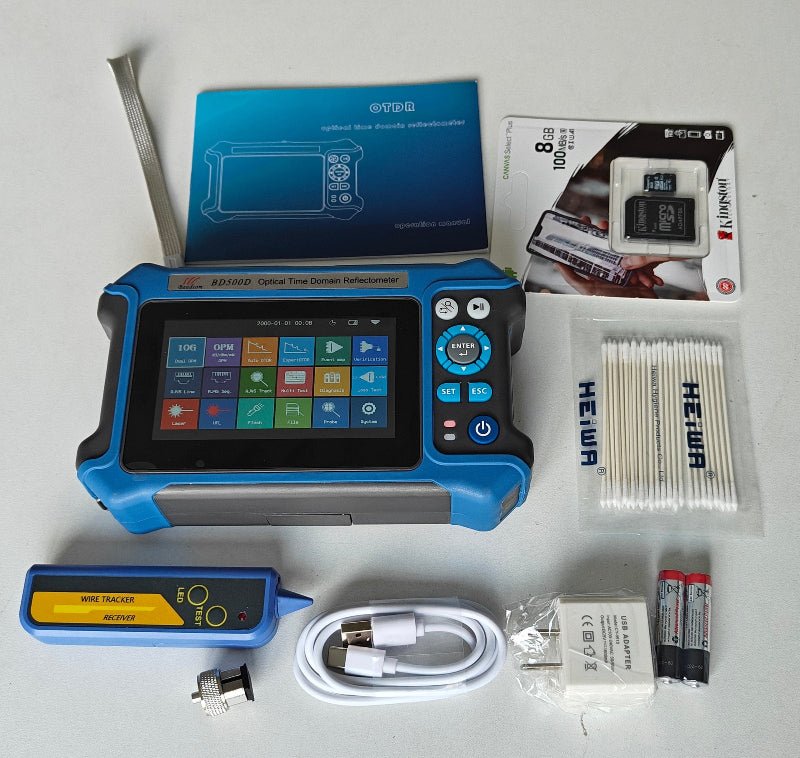

Equipped with a touchscreen interface, built-in optical power meter, VFL, light source, and RJ45 tester, this device simplifies fiber network installation and maintenance. Its portable 400g design and 12-hour working time make it the perfect tool for field engineers.
Technical Specifications
|
Model |
BD500D |
|
|
Wavelength |
1310nm/1550nm±20nm |
|
|
Fiber Type |
G.652 |
|
|
Dynamic Range |
28dB/26dB |
|
|
Event Blind Zone |
3m |
|
|
ATT Blind Zone |
8m |
|
|
Test Range |
500m~80km |
|
|
Pulse Width |
3ns~10us |
|
|
Ranging accuracy |
±（1m+ Sampling interval +0.005％×Test distance） |
|
|
Loss accuracy |
±0.05dB/dB |
|
|
Sampling Points |
16k~128k |
|
|
Sampling resolution |
0.05m~8m |
|
|
Reflection accuracy |
±3dB |
|
|
Data Storage |
Internal：≥600；External：TF Card |
|
|
Laser Safety Level |
Class Ⅱ |
|
|
File format |
SOR Standard file format |
|
|

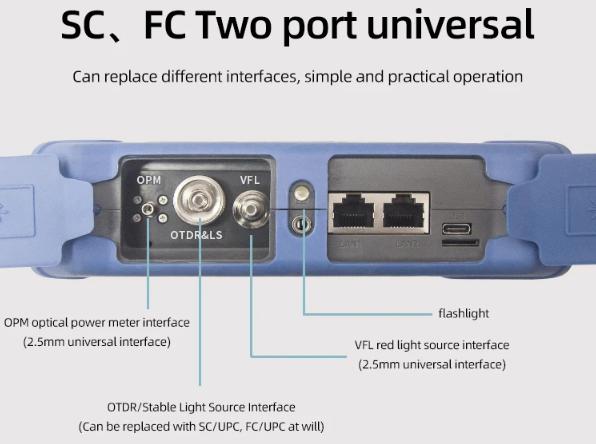

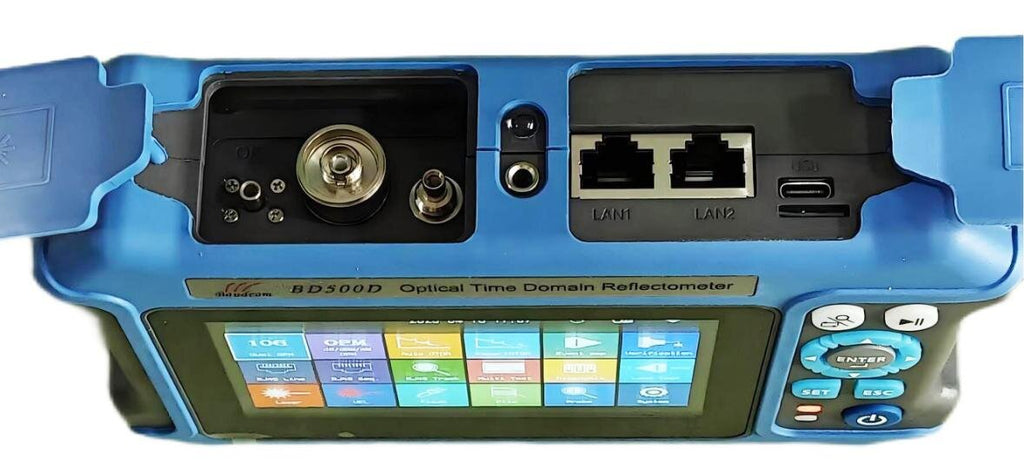

Connector |
FC/UPC（Interchangeable SC、ST） |
|
|
10G OPM |
||
|
Wave Range |
1490nm/1577nm |
|
|
Interface Type |
Universal Joint FC/SC/ST |
|
|
Test Range |
-40dBm～+10dBm |
|
|
Uncertainty |
±5% |
|
|
Frequency Identification |
CW/270/330/1k/2kHz |
|
|
OPM |
||
|
Wave Range |
800nm~1700nm |
|
|
Interface Type |
Universal Joint FC/SC/ST |
|
|
Test Range |
-50dBm～+26dBm |
|
|
Uncertainty |
±5% |
|
|
Frequency Identification |
CW/270/330/1k/2kHz |
|
|
Calibration wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|
|
LS |
||
|
LD Type |
FP-LD |
|
|
Wavelength |
1550nm±20nm |
1310nm/1550nm±20nm |
|
Output Power |
≥-5dBm |
|
|
Modulation Frequency |
270/330/1k/2kHz |
|
|
Stability |
CW，±0.5dB/15min （Test after 15 minutes of preheating） |
|
|
Connector |
FC/UPC（Interchangeable SC、ST） |
|
|
VFL |
||
|
Wavelength |
650nm±20nm |
|
|
Output Power |
≥10mW |
|
|
Mode |
CW/1Hz/2Hz |
|
|
Connector |
FC/SC/ST |
|
|
RJ45 Cable Length Measurement |
||
|
Test Range |
300m |
|
|
Other Parameters |
||
|
Display |
4.3 inch Color LCD |
|
|
Data Interface |
Micro USB |
|
|
External storage |
TF Card |
|
|
Power Supply |
Polymer Li-Battery：3.7V，4000mAh Adapter：5VDC，2A |
|
|
Battery Life |
Standby＞20h；Measuring time＞12h |
|
|
Operating Temperature |
-10℃～+50℃ |
|
|
Storage Temperature |
-40℃～+70℃ |
|
|
Relative Humidity |
0～95％Non Condensing |
|
|
Size |
180mm×110mm×44mm |
|
|
Weight |
≤400g |
|
