BAUDCOM PON optical power meter is a small size, low loss and good quality handheld optical power meter. The fiber power meter is designed for the testing , installation and maintenance of FTTX PON network , which can be used for APON, BPON, EPON and GPON network. The optical power meter has two output ports for ONU and OLT/Video, which supports CW/burst upstream detection at 1310nm and downstream signal at 1490/ 1550nm. The fiber optic power meter can directly show the status of pass , warning or failure by threshold testing . The PON optical power meter is the ideal tool for PON setting and maintenance.
![power meter](https://cdn.shopifycdn.net/s/files/1/0566/0033/0406/files/x1_1d99e747-f105-49d5-bc56-eb27d3ce289c.jpg?v=1643364087)

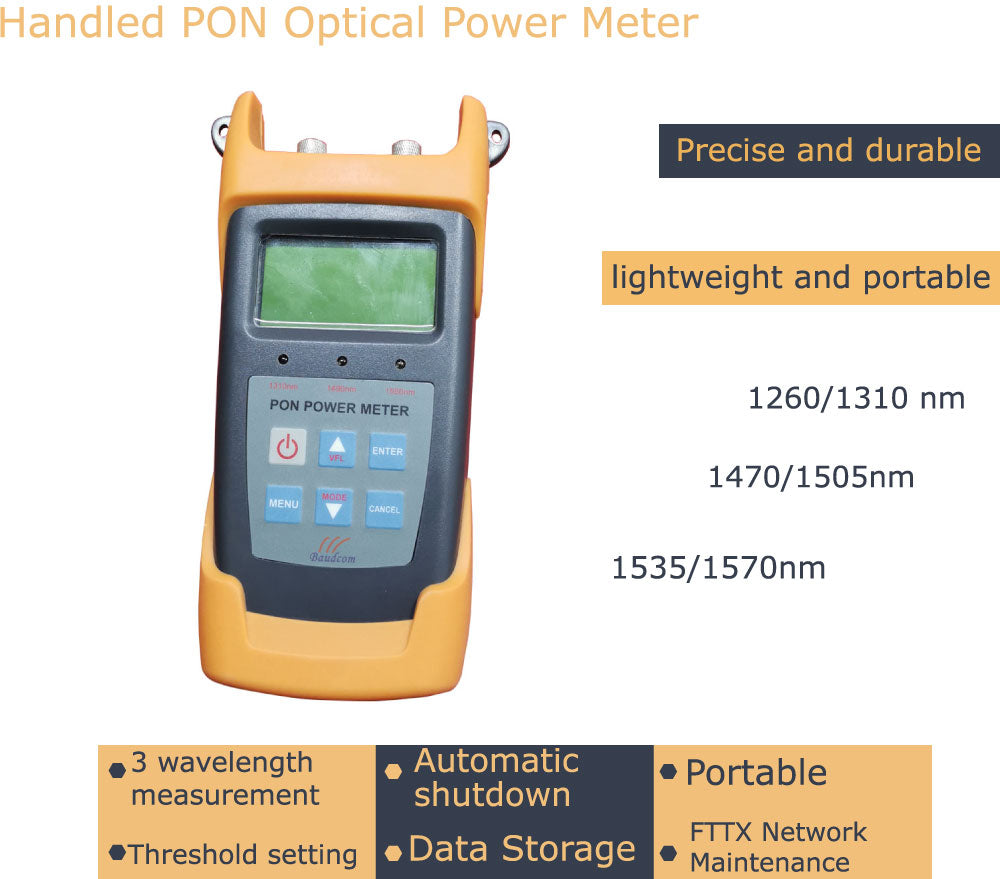

![power meter](https://cdn.shopifycdn.net/s/files/1/0566/0033/0406/files/x2_6f604f4e-5367-40eb-89dd-fd15774dd0d5.jpg?v=1643364111)

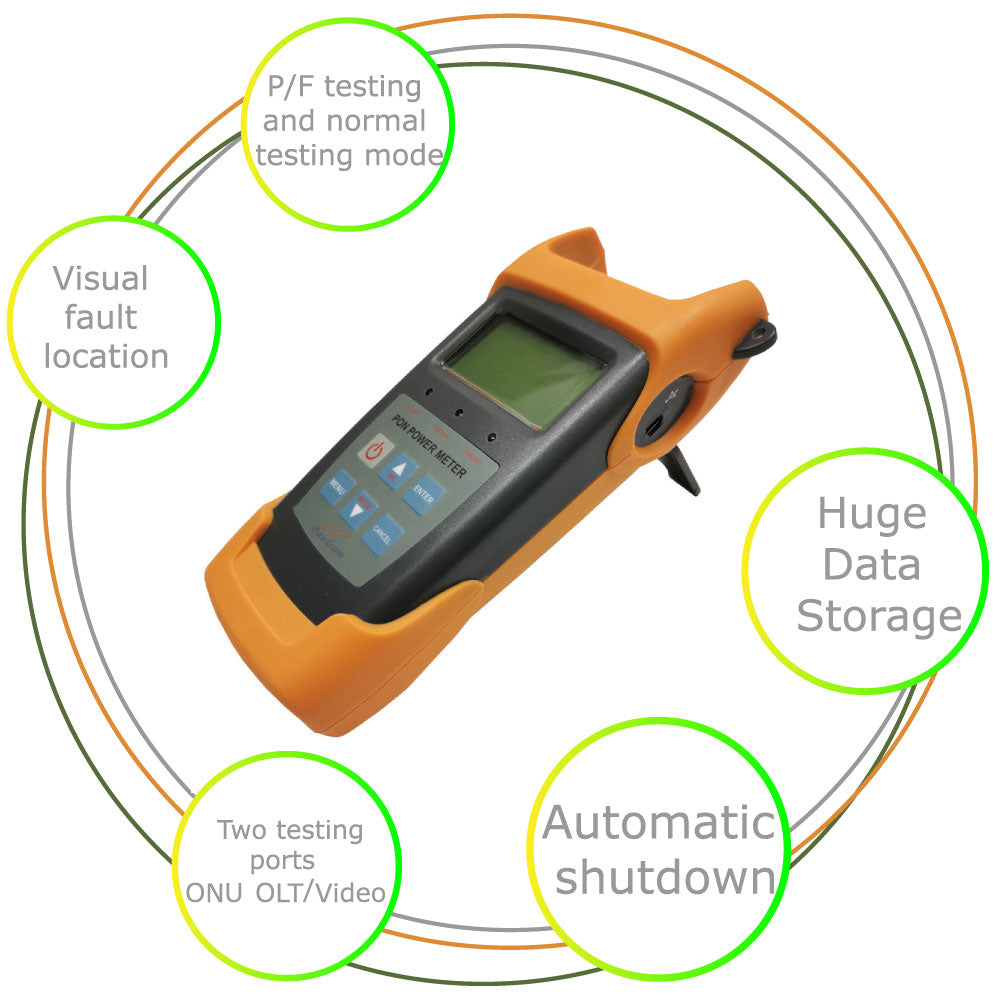

![power meter](https://cdn.shopifycdn.net/s/files/1/0566/0033/0406/files/x3_8dca8574-4850-4180-bda2-86cbbafd9cc4.jpg?v=1643364140)

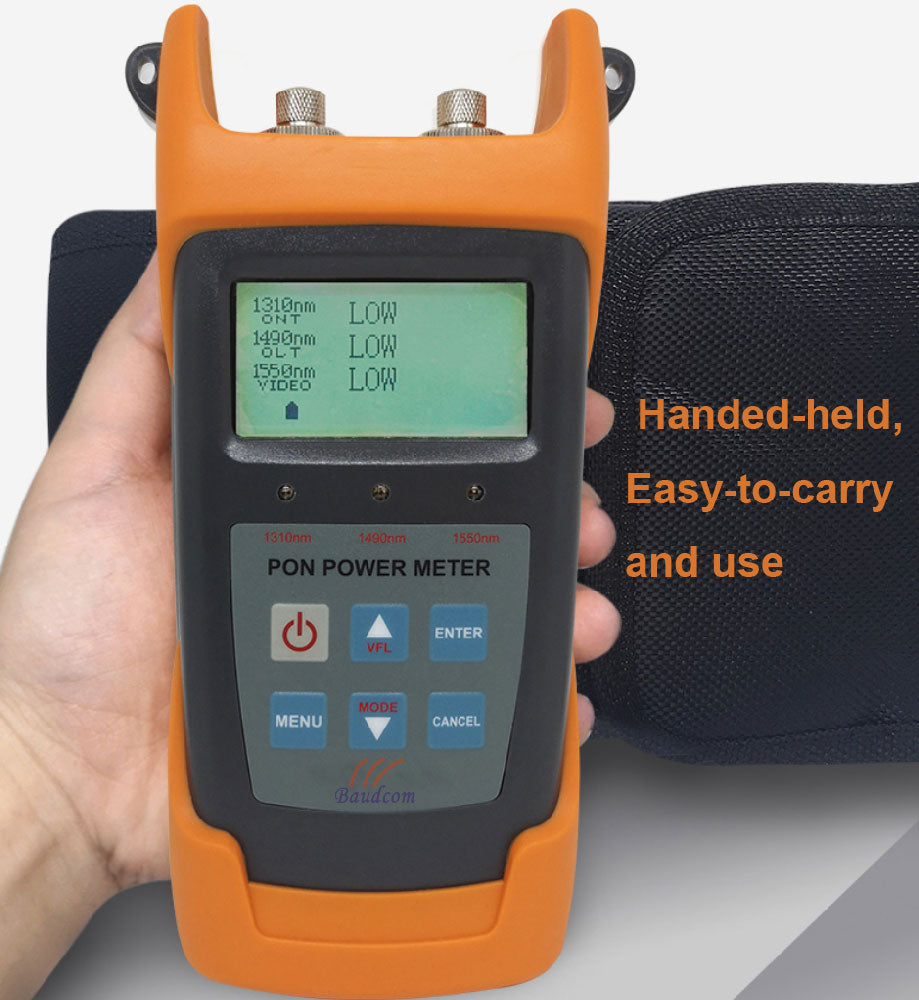

![power meter](https://cdn.shopifycdn.net/s/files/1/0566/0033/0406/files/x4_c545f034-6014-400c-a355-a6bfc56bbe11.jpg?v=1643364168)

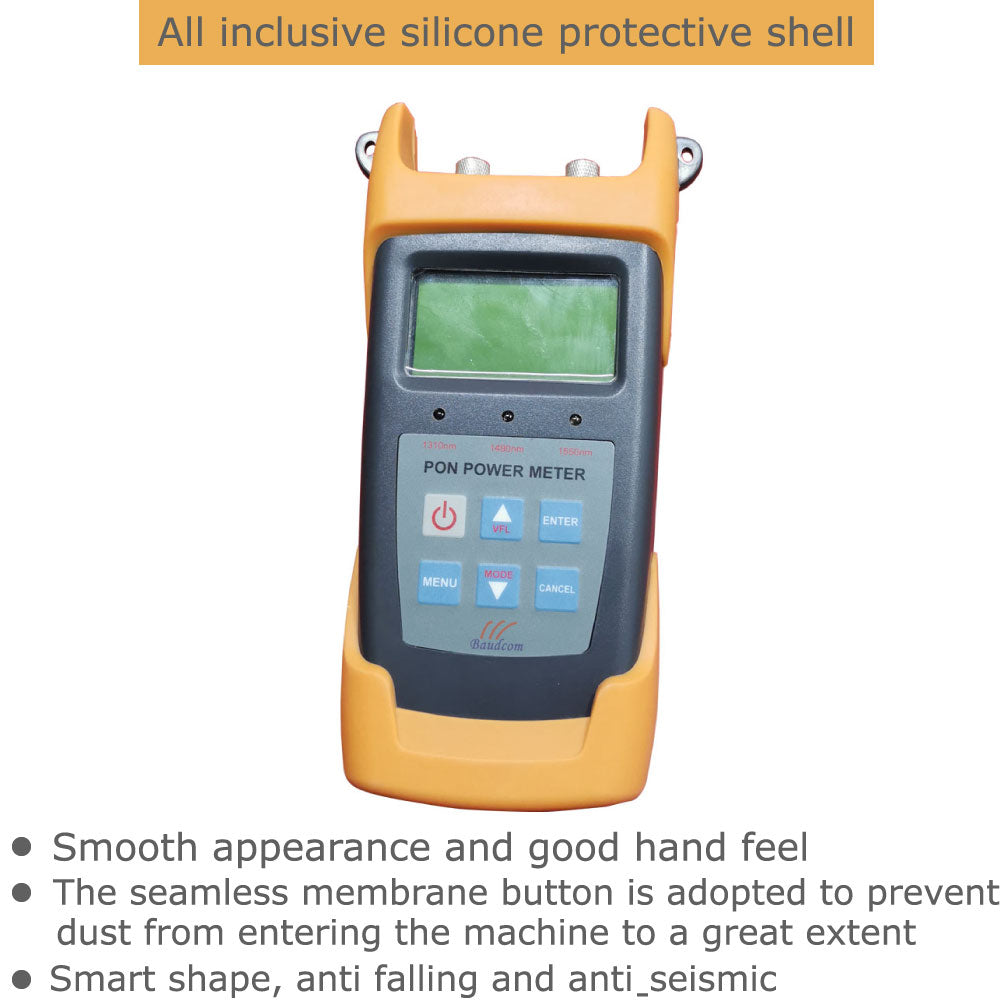

![power meter](https://cdn.shopifycdn.net/s/files/1/0566/0033/0406/files/x5_086a75cb-885b-4780-b884-784b6d7a7ae0.jpg?v=1643364193)
Specification
Wavelength |
1310nm (Burst) |
1310nm(CW) |
1490 nm |
1550 nm |
Linearity |
± 0.2@1550 ≥ -40dBm |
Isolation Rate |
>40@1490nm |
>40@1310nm |
>40@1310nm |
|
>40@1550nm |
>30@1550nm |
>30@1490nm |
Measuring Range (dBm) |
-30~+16 |
-40~+16 |
-50~+16 |
Insertion Loss(dB) |
1.5 |
Spectral Width |
1260~1360 |
1480~1500 |
1539~1565 |
Accuracy |
0.5db ± 1nW @ 1550 nm |
Threshold |
10sets(configure via PC-software) |
Data storage |
900 |
Accessories adaptors |
SC/PC(standard) ST/PC ,FC/PC (Optional) |
Standard Configuration :
1pcs Fast User Manual ; 1pcs USB Line ; 2pcs 5# 1.5V batteries ; 1pcs Software CD ; 1pcs Testing Report ;1pcs Screw driver .
Optional Accessories :
1pcs 6v φ2.1 Adaptor ; 1pcs Soft Bag ; 2pcs ST/PC , FC/PC , G3 Adaptor

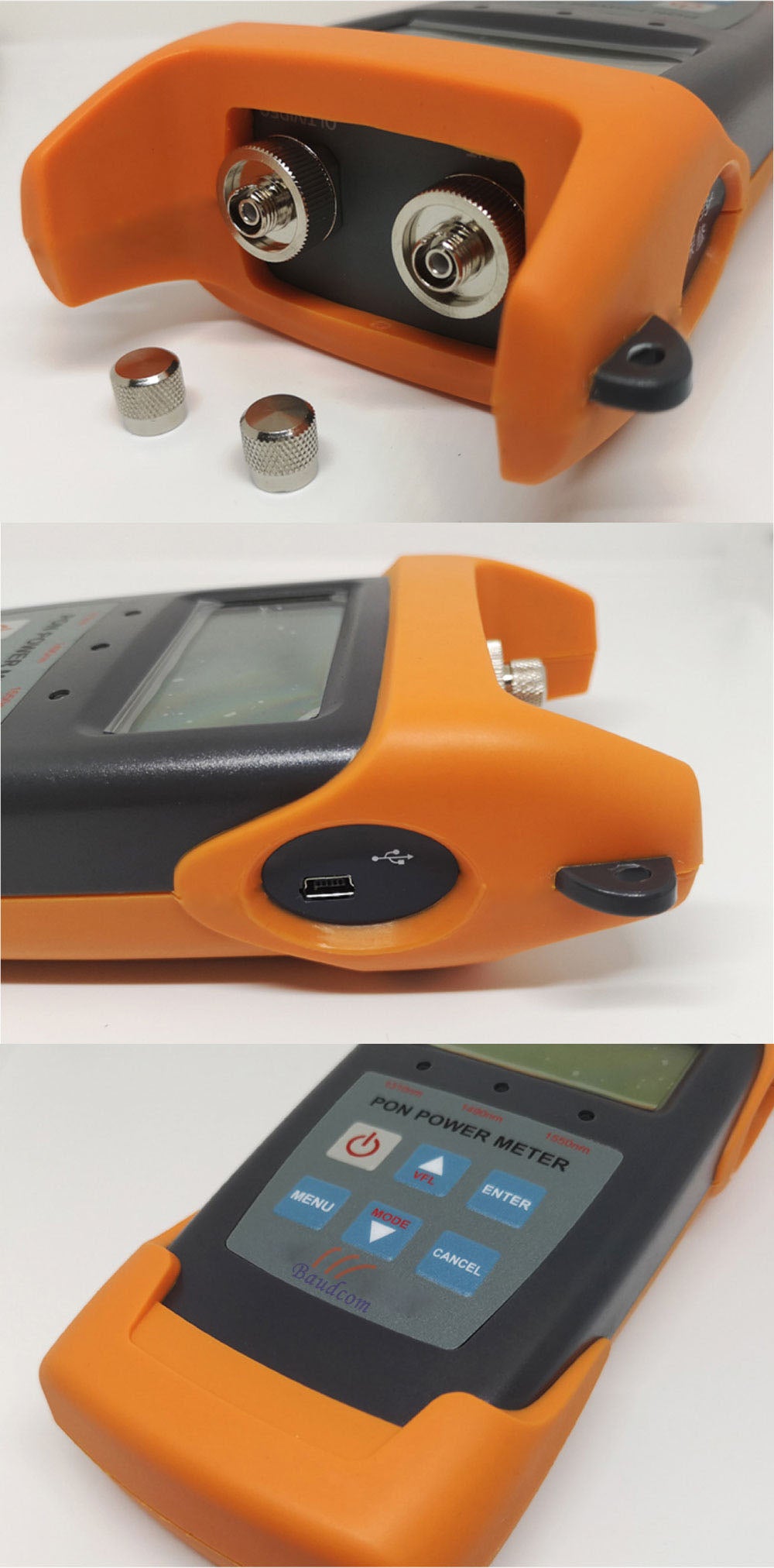

Product Display
![power meter](https://cdn.shopifycdn.net/s/files/1/0566/0033/0406/files/x6_bd273051-9e9b-4e27-a0d5-c0e03e39978b.jpg?v=1643364220)
Order Information
Model |
Description |
BD-PON-J3 |
PON Power Meter,CW/burst upstream detection at 1310nm and downstream signal at 1490/ 1550nm,FC/SC adapter for option, dry battery
|
