Description
Baudcom’s 2X1 1U optical power switch combines cutting-edge automation with reliability, offering minimal insertion loss for high-performance optical network protection. The fiber optic switch advanced switching module instantly identifies signal disruptions in primary optical paths and activates backup routes, ensuring zero downtime in mission-critical CATV, telecom, and fiber to home optical communication infrastructures.
1U Optical Power Switch Highlights:
-
Precision Switching: Automatically detects optical power fluctuations and triggers sub-millisecond path switching.
-
User-Friendly Interface: LCD screen and LED indicators provide real-time insights into optical power levels and system status.
-
Adaptive Configuration: Adjustable optical power thresholds and manual override options for tailored operation.
-

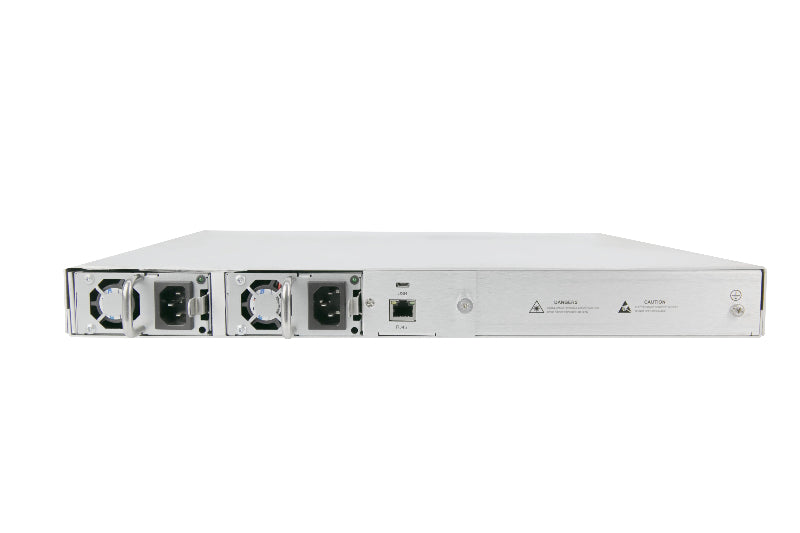

Scalable Design: Compact 19” 1U rack-mountable chassis with hot-swappable dual PSUs for easy maintenance and high availability.
-
Thermal Efficiency: Aluminum alloy construction and plug-in power supply design optimize heat dissipation.
-
Remote Management: RJ45 port supports SNMP-based network monitoring and control.
Optical Power Switch Application:
-
CATV optical transmitter/amplifier redundancy and optical route protection
-
Building self-healing networks and optical cross-connect (OXC) systems
-
Dynamic optical add/drop multiplexing (ROADM/CADM)
-
Optical network surveillance, fault diagnostics, and equipment testing
■ Technical parameters
|
Item |
Unit |
Technical parameters |
|
|
Working wavelength |
nm |
1535~1565(centre wavelength 1550nm) |
|
|
Input power |
dBm |
A type |
B type |
|
dBm |
-10dBm~+10dBm |
-20dBm~+24dBm |
|
|
Insertion loss |
dB |
＜1.3(wavelength 1550nm) |
|
|
Return loss |
dB |
>55 |
|
|
Type of fiber optic connector |
|
FC/APC、SC/APC、LC/APC(Customizable ) |
|
|
Switching mode |
|
Automatically、manually |
|
|
Switching time |
ms |
＜8 |
|
|
Working life |
|
> 1 million times |
|
|
Power supply |
V |
AC(90 ~ 264) (Optional DC or UPS) |
|
|
Local power consumption |
W |
≤20 |
|
|
Network management mode |
|
Support SNMP |
|
|
Network management interface |
|
RJ45 |
|
|
Item |
Unit |
Technical parameters |
|
|
Working temperature |
℃ |
-5～+55 |
|
|
Max operating relative humidity |
% |
Max 95% without condensing |
|
|
Storage temp. range |
℃ |
-40 ~ +80 |
|
|
Max storage relative humidity |
% |
Max 95% without condensing |
|
|
Product net size |
mm |
482(W)* 356(D) *44(H) |
|
|
)Package size(1 unit) |
mm |
590(W)* 505(D)* 115(H） |
|
|
Package size(2 units) |
mm |
590(W)* 505(D)* 220(H） |
|
|
Package size(5 units) |
mm |
590(W)* 505(D)* 525(H） |
|
■ Order Information:
Model: BD-OSW2*1-SA-SA-22
Description:1U chassis optical switch device, 2*1, input optical connector is SC/APC, output port connector is SC/APC, main power supply voltage is 220V, Auxiliary power supply voltage is 220V.
