Description
Founction: G.703 16 E1 Balun Panel, 75 ohm to 120ohm impedance balun converter,19′ rack mount
Description:

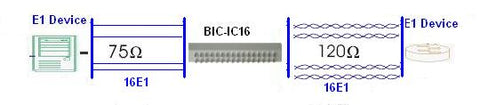

BIC-C16 G.703 rack mount 16E1 balun panel solve the mismatch between UTP and coaxial cable.BIC-IC16 can achieve a maximum of 16 channel conversion. Operating in compliance with the CCITT G.703 specification, the BD-IC16 occupies only 1U of vertical rack space in a 19″ (48.3 cm) rack-allowing for efficient multiport matching.
Features:
- Connects 75 ohm dual coax to 120 ohm twisted pair (or visa versa)
- Bi-directional signal conversion according to CCITT G.703
- Data rates up to 2.048 Mbps
- Low profile design
- Mounts in standard 19″ (48.3 cm) Rack
- No AC power or batteries required
- Female coax BNC connectors
-
- back picture of the 16port E1 balun panel
Specification
Application
Order information
| Product Model | Descriptions |
|---|---|
| BIC-C16 | 16 ports G.703 Balun Panel, 75 ohm to 120ohm impedance converter,19' rack mount |
