Description
BD-E3-ETH is cost-effective intelligent DS3/E3 to ethernet converter which offers a cost-effective connection between E3/DS3 services and 10/100BaseT LANs. They enable service providers and ISPs to provide transparent Ethernet services without interfering with user traffic. In addition to point to point application, the equipment can also work with Baudcom center device as a terminal device with 16 service directions.
Features:
- Support 4*10/100Base-Tx ethernet over 1~2 E3/DS3 channel;
- Customer should offer E3 or DS3 separately, E3 and DS3 cannot be supported imultaneously; Comply with IEEE802.3;
- Automatically restrain broadcast storm;
- Support diagnostic tools for TDM and Ethernet networks, for fast isolation of network problems, saving time and costs;
- Rich alarm indications such as E3/DS3 AIS/LOS, ETH LINK/ACT etc;
- Ethernet ports support 10/100M half/full duplex auto-adapted;
- Plug-and-Play LAN connection;
- Support HP auto MDIX function, MDI/MDIX auto-adapted;
- High reliability with low CAPEX and OPEX.
- Can realize SNMP management in our chassis installation
Eterhent over E3 converter Rear panel
Eterhent over 2E3 converter Rear panel
Specification
| Item | Description | ||
|
Products List |
Connects four-port 10/100Base-Tx Ethernet LAN over one E3/DS3 channels |
||
|
E3 interface |
Comply with ITU-T G.703, 75ohm unbalanced | ||
|
DS3 interface |
44.736Mbps, 75 ohm unbalanced | ||
|
Ethernet interface |
10/100Base-Tx, RJ4510/100M auto-adaptive, half/full duplex auto-adaptive | ||
|
Power |
Supply option | DC -48V (-32V~-72V) | |
| AC 220V (90V~265V) | |||
| Consumption | ≤8 W | ||
|
Dimension |
(W×H×D) | 440 × 44 ×138 (mm) | |

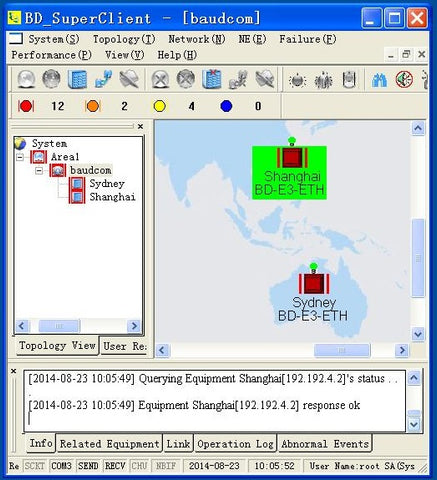

Network managemenet screen:
Application
Order information
| Product Model | Descriptions |
|---|---|
| BD-E3-ETH | E3/ethernet converter,one E3 port,4*10/100M ethernet,power AC220V or DC48V |
