Description
Extend HDMI signals over long distances with the HDMI KVM Fiber Optic Extender, featuring 1080P video resolution and bi-directional audio support. This extender operates over a single fiber optic cable, offering exceptional transmission quality up to 20km. HDMI extender with USB Perfect for businesses, data centers, or professional setups, it provides video, audio, USB, and serial RS232 signals through a reliable fiber connection.
Enjoy automatic image adjustment and compatibility with various devices, including monitors and control systems, HDMI extender with USB making this an ideal solution for long-range HDMI transmission in various environments.

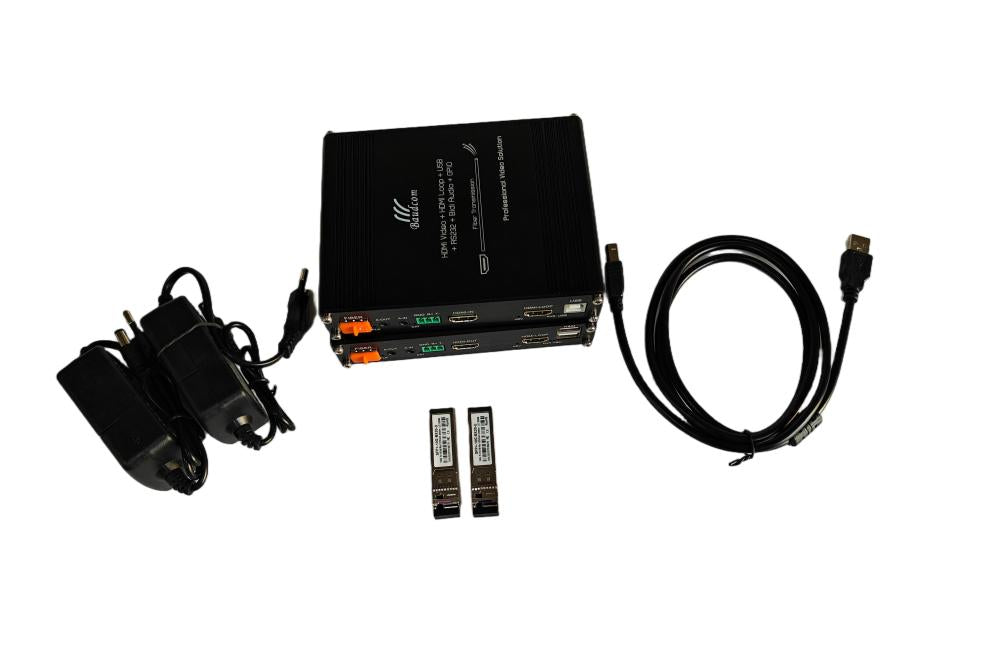

Package list

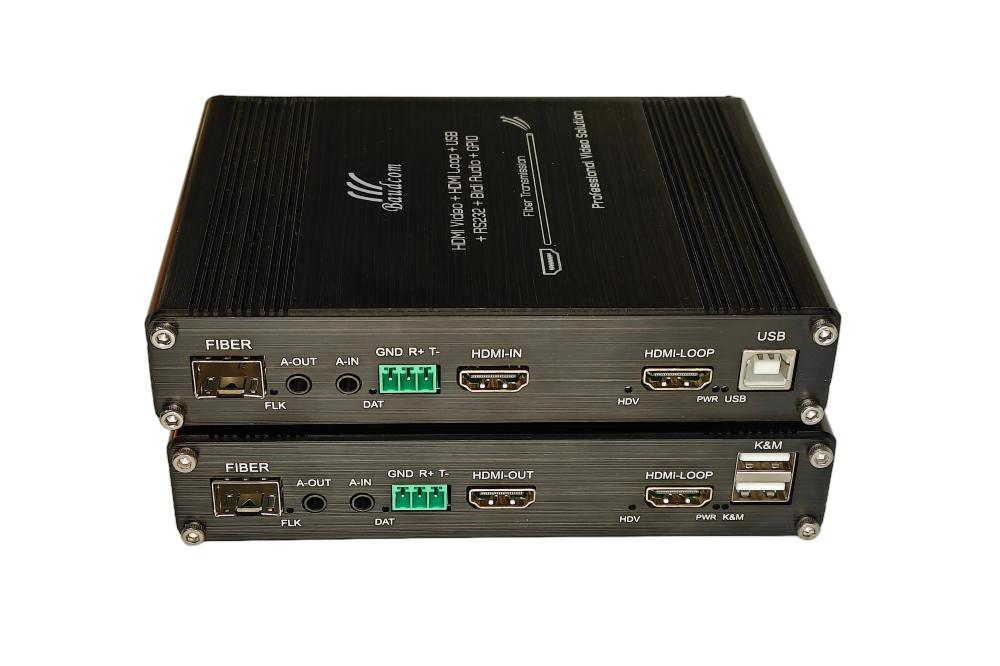

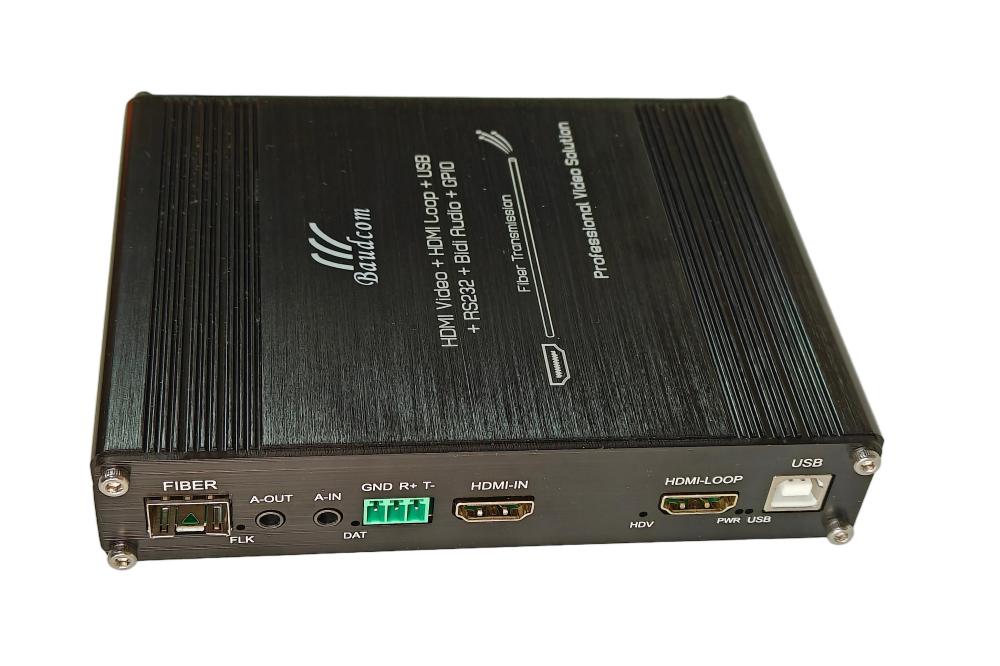

• HDMI KVM Optical Fiber Transmitter 1 PCS
• HDMI KVM Optical Fiber Receiver 1 PCS
• SFP Optic Module 2 PCS
• USB Cable 1 PCS
• Power Adapter 2 PCS
• User Manual 1 PCS
Specifications
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI1.4B 3D; HDCP1.4 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
4.25Gbps |
|
|
Compliant |
1080P@50/59.95/60Hz (Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz,1080i@50/59.94/6 0/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz Special support 1600*1200 @60HZ |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Q |
|
|
HDMI Cable Range |
<5Meter (Resolution up to 1920*1200@60Hz) |
|
|
Audio |
Interface |
3.5MM stereo audio |
|
Optical fiber |
Interface |
SFP model - LC connector |
|
Fiber type |
Single-mode |
|
|
Wavelength |
1310nm |
|
|
Interface bandwidth |
4.25Gbps |
|
|
Transmission distance |
Single-mode fiber: 20km |
|
|
KVM |
Interface |
To PC: USB (Type B) To keyboard and mouse: USB-A |
|
GPIO |
Interface |
Industrial terminal |
|
RS232 |
Interface |
Industrial terminal |
|
Signal direction |
Unidirectional |
|
|
|
Baud rate |
Self-adaptive, Max： 115200bps |
|
Data bits |
8 |
|
|
Other |
Power supply |
The power adapter: DC 12V |
|
Power Consumption |
< 10W |
|
|
Temperature |
Operating: -20T ~ +70°C |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension (LxWxH) |
147 x 115x28 (mm) |
|
HDV |
HDMI Video signal connection indicator |
|
FLK |
Fiber Connection status |
|
DAT |
RS232 Data Transmission status |
|
USB |
USB Connection ( To PC) |
|
K&M |
USB Keyboard and Mouse Connection |
|
PWR |
Power indicator |
Installation
1. The HDMI signal source access HDMI Optical Fiber Transmitter
2. The HDMI Optical Fiber receiver connected to a display device (such as high-definition TV, splicing screen, etc.),
3. The LC interface optical fiber line connects the Transmitter and the receiver SFP optical fiber interface module,
4. The Transmitter and the receiver connected to the power, when the lamp lights up normally, normal operation of system.
Warranty
Thank you very much for using our products.
The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.
