Description
BD-2EOC-MC-GE is the integrate EOC Master with two EOC master module and one Media Converter module.
The BD-2EOC-2GE EOC Master can provide high speed data service based on coaxial cable network. BD-2EOC-2GE built in a media convert, 10/100/1000Mbps media converter. The module supports IEEE 802.3, 802.3ab, 802.3u, 802.3z standards. It provide one SC/PC optical connector for 1000Base-Lx and four 10/100/1000M auto-negotiable Ethernet RJ45 interface. It can work with our MC head-end products and compliant with the third-party equipment.
The EOC Master Module is based the Qualcomm AR7410 chipset solution，with high anti jamming capability OFDM technology. The 7.5-65MHz low frequency band is used for EOC signals. Built in high isolation filter as CATV RF and EOC signal mixer, the EOC signal and CATV signal in 87~862MHz can run on one cable without interference. The EOC Master can provide high speed data service. The PHY Layer speed is 600Mbps, the MAC Layer throughput is up to 320Mpbs.
The MC module connects with the EOC module, Ethernet data signals will be modulated into RF signals to transmit in the coaxial cable. BD-2EOC-MC-GE integrating EOC and MC can reduce the number of active node, decreasing failure rate and saving a space. It is the best choice of LAN+EOC solution for the operator.
Function Features
- High integration with two EOC Master modules and one MC module
- Aluminum alloy die casting shaping, good heat dissipation
- Outdoor waterproof designed, 60V/220V power supply optional
- 7.5-65Mhz frequency for EOC signals., no influence on CATV Service
- Support broadcast storm limitation
- Support data packet statistics
- Support auto-update and auto-configuration
- Support On-line upgrading
- Support optical power measuring
- Flexible bandwidth allocation function
- Provide QOS for different service requirement
- Provide fault alarm function , easy for troubleshooting
- MC module is one standard media converter, provide different optical connector for different applicatio requirement
- Network management optional
- Compliant with the third-party equipment
- Support EMS based SNMP
Specification
|
Item |
Parameters |
Specification |
|
Specification of EOC Module |
||
|
Interface and LED Indicator |
RF Port |
1*EOC low-frequency signal output port, support F- Female or SMB connector |
|
Ethernet Port |
2*2 10/100/1000M auto-negotiation, RJ45 | |
|
LED Indicator |
2*1 for Power Supply Status2*1 CABLE Link Status indicator
2*2 for Ethernet Ports Status |
|
|
Performance Parameters |
RF Parameters |
Frequency Band :7.5-65MHzRF Output Level:110【5dBuv@ output of module
Receive sensitivity: 45dBuv Return Loss:>16dB Output Resistance:75ヘ |
|
Transmission |
PHY Layer:600MbpsThroughput on MAC Layer:320Mbps | |
|
Modulation Mode |
OFDM~ 2690~carriers 4096,1024,256,64,16,8~QAM, QPSK, BPSK, ROBO | |
|
Working Mode |
TDMA/CSMA | |
|
Encryption Mode |
AES-128 | |
|
Standard |
EOC Standard |
IEEE P1901(Draft)HomePlug AV |
|
Ethernet Standard |
IEEE 802.3, IEEE 802.3x, IEEE 802.3uIEEE802.1P, IEEE802.1Q | |
|
Software |
Network Management |
WEB, CLI, SNMP |
|
Software Features |
VLAN, QOS, Bandwidth Control, Broadcast storm limitation | |
|
Specification of MC Module |
||
|
Interface |
Copper Port |
One 10/100/1000Mauto-negotiation , RJ45;Compliant with IEEE802.3, IEEE802.3u,IEEE802.3z
Auto MDI/MDI-X Full/Half-Duplex Up to 100m distance |
|
Fiber Port |
Connector Type: One SC/PC1000Base-SX，1000Base-Lx
1.25Gbps Wavelength 850nm/1310nm/1550nm optional Transmission distance 2ⅵ100KM |
|
|
Power Supply |
2PIN socket, 12V DC | |
|
Indicator Description |
PWR |
On： Power is coming upOff： no power supply |
|
Fiber |
On： Optical LinkedBlink：In transmitting or receiving
Off： Not connected or link trouble |
|
|
1000M |
On： Linked on 1000MbpsBlink: optic port connected well
Off： Not connected or link trouble |
|
|
Act |
On： Physical link is OKBlink: In transmitting or receiving
Off： Not connected or link trouble |
|
|
Performance Parameters |
Working Mode |
Store-and-forward |
|
Max Packet Length |
9K bytes | |
|
Packet Forwarding |
1488000pps (64bytes/Frame) | |
|
latency |
< 5us @64bytes, 28us@1518bytes | |
|
Packet Loss |
operating temperature range：Packet Loss in 72 hours：0%Long-term Packet Loss：<10-7 (64 ~9728 bytes @ 100% throughput) | |
|
Physical Features |
||
|
Physical Features |
Power supply & Consumption |
Power Supply：220V/60V optionalConsumption：<16.5W |
|
Size & Net weight |
Dimension：290】220】120mmWeight：3.7kg | |
|
Environment Attribute |
Working Temperature：－10ⅵ65∩Storage Temperature：-40ⅵ85∩
Working humidity：10%ⅵ90%non-condensing Storage humidity：10%ⅵ90% non-condensing |
|

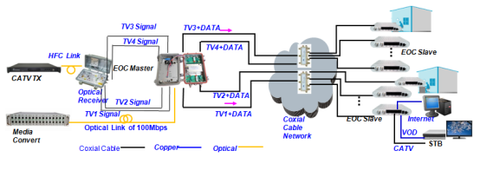

Application
Order information
| Product Model | Descriptions |
|---|---|
| BD-2EOC-MC-GE | Product Item Description EOC Master (MC+EOC), Built-in one MC Module and two 74 series chipset EOC Module; One GE for uplink (Single fiber 20KM)、four TV RF input port、four TV+data mix output port; Outdoor waterproof designed, AC 220V |
