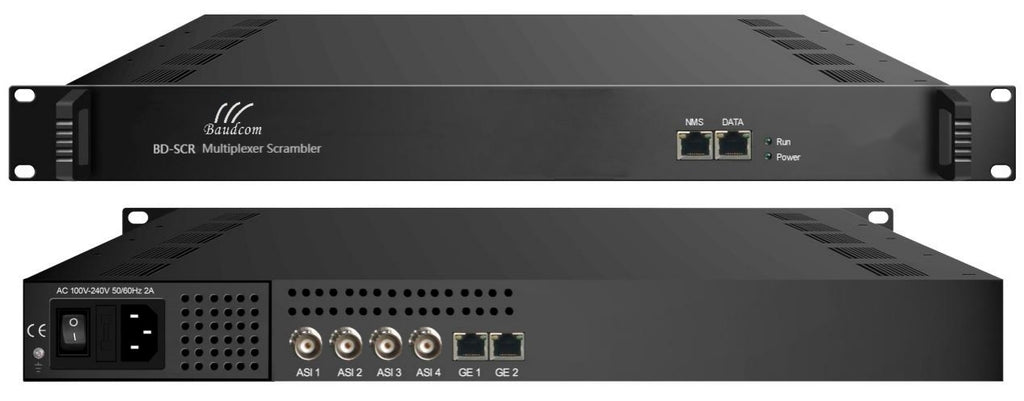

This Digital TV scrambler is a complete headend solution for digital TV service providers. It combines multiplexing and scrambling in a compact 1U chassis, featuring 4 bi-directional ASI ports and 3 bi-directional IP ports. As a dedicated digital TV scrambler, it supports up to 4 simulcrypt CAs, enabling seamless integration with major conditional access systems. The unit accepts up to 128 IP inputs and delivers 4 MPTS outputs, with full PID remapping, PCR adjustment, and PSI/SI rebuilding. Web-based management simplifies configuration and monitoring.
Digital TV IP scrambler Key Features
l ASI in/out: max 4 ASI input/output thru 4 bi-direction ASI ports (ASI direction can be defined as input or output manually)
l IP in/out: 128 IP input, 4 IP (MPTS) output thru 3 bi-direction Data ports
l Support scramble with up to 4 simulcrypt CAs
l Up to 512 PIDs remapping per output channel
l Support accurate PCR adjusting, PID filtering, re-mapping and PSI/SI rebuilding and editing
l Huge buffer memory for saving the overflowing code stream
l Alarming function
l Web-based NMS management
Inner Principle Chart
Specifications
|
Input / Output
|
4 bi-direction ASI ports: max 4 ASI input/output, BNC 75Ω
3 bi-direction Data ports (RJ45): 128 IP input over UDP/RTP
4 IP (MPTS) output over UDP/RTP/RTSP
100/1000Mbps self-adaption
|
|
Input Packet format: 204/188 self-adaption
|
|
ASI: Max output bit-rate: 200Mbps (Each channel)
|
|
Mux
|
Max PIDs
|
512 per channel
|
|
Functions
|
PID re-mapping
|
|
PCR accurate adjusting
|
|
Automatic generating PSI/SI table
|
|
PID transparent
|
Any PID transparent and mapping achievable
|
|
Scrambling
Parameters
|
Max simulcrypt CA
|
4
|
|
Scramble Standard
|
ETR289, ETSI 101 197, ETSI 103 197
|
|
Scramble Channel
|
1
|
|
Connection
|
Local/remote connection
|
|
System
|
Web-based management
|
|
Language: English and Chinese
|
|
Ethernet software upgrade
|
|
General
|
Dimensions
|
482mm×300mm×44mm (WxLxH)
|
|
Weight
|
3.5kg
|
|
Temperature
|
0~45℃(operation), -20~80℃(storage)
|
|
Power supply
|
AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz
|
|
Consumption
|
≤40W
|
