RoHS Compliant QSFP+ PSM 10km Transceiver Optical

Transceiver Optical's Product Descriptions

Olinkphotonics’ BD-QSFP-CD10 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel . and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10.3Gbps operation for an aggregate data rate of 40Gbps 10km using single mode fiber. These modules are designed to operate over single mode fiber systems using 1310nm DFB laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ PSM LR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.

Fiber Optic Transceivers' Product Features

• Four-channel full-duplex transceiver modules
• Transmission data rate up to 11.2Gbit/s per channel
• Up to 10km transmission of single mode fiber
• DFB laser array inside
• Low power consumption <2.5W，
• Operating case temperature:0°C to +70°C

• 3.3V power supply voltage
• RoHS 6 compliant
• Hot Pluggable QSFP form factor
• Single MPO connector receptacle
• Built-in digital diagnostic function

 Applications

• InfiniBand QDR, DDR and SDR
• 40G Ethernet
• Proprietary High Speed Interconnections
• Data center

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit	Note
Supply Voltage	Vcc	-0.3	3.6	V
Storage Temperature	TS	-40	85	°C
Relative Humidity	RH	0	85	%
Damage Threshold, per Lane	DT	3.4		dBm



Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.

General Operating Characteristics

Parameter	Symbol	Min	Typ	Max	Units	Note
Bit Rate per Lane	BR			10.313	Gb/s	1
Bit Error Ratio	BER			10-12		2
Distance on SMF	D1			10	Km	3

Notes:

1. Compliant with 40G Ethernet. Compatible with 1/10 Gigabit Ethernet and 1/2/4/8/10G Fibre Channel.
2. Tested with a PRBS 2^31-1test pattern.
3. Per 40GBASE-LR4, IEEE 802.3ba.

 Optical Characteristics (TOP(C) = 0 to 70 ℃,VCC = 3.13 to 3.47 V)

Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Transmitter
Operating Wavelength	λc	1270	1310	1350	nm
Ave. output power	PAVE	-5.2		+1	dBm
Difference in launch power between any two lanes (OMA)	DL			5	dB
Extinction Ratio	ER	3.5			dB
Peak power, each lane	PP			4	dBm
Dispersion penalty, each lane	TDP			3.5	dB
Average launch power of OFF transmitter, each lane	POFF			-30	dB
Eye Mask coordinates: X1, X2, X3, Y1, Y2, Y3	SPECIFICATION VALUES 0.23, 0.34, 0.43, 0.27, 0.35, 0.4					Hit Ratio = 5x10-5
Transceiver Optical's Receiver
Operating Wavelength	λc	1270		1350	nm
Stressed receiver sensitivity in OMA(OLSQ854XM-CDS1)	PSEN1			-12.5	dBm	3
Average Receive Power,each lane	PAVE	-11		+2.4	dBm
Receiver Reflectance	Rrx			-12	dB
LOS Assert	Pa	-30			dBm
LOS De-assert	Pd			-15	dBm
LOS Hysteresis	Pd-Pa	0.5			dB

Notes:

1. Measured with conformance test signal at TP3 for BER = 10^-12Receiver Characteristics

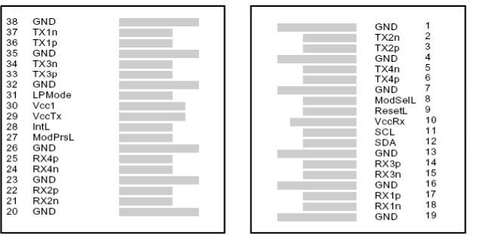

 Fiber Optic Transceivers's Pin Defintion And Functions

                       Top side                                                   Bottom side

Pin	Symbol	Name/Description	Notes
1	GND	Ground	1
2	Tx2n	Transmitter Inverted Data Input
3	Tx2p	Transmitter Non-Inverted Data Input
4	GND	Ground	1
5	Tx4n	Transmitter Inverted Data Input
6	Tx4p	Transmitter Non-Inverted Data Input
7	GND	Ground	1
8	ModSelL	Module Select	1
9	ResetL	Module Reset
10	Vcc Rx	+3.3 V Power supply receiver
11	SCL	2-wire serial interface clock
12	SDA	2-wire serial interface data
13	GND	Ground	1
14	Rx3p	Receiver Non-Inverted Data Output
15	Rx3n	Receiver Inverted Data Output
16	GND	Ground	1
17	Rx1p	Receiver Non-Inverted Data Output
18	Rx1n	Receiver Inverted Data Output
19	GND	Ground	1
20	GND	Ground	1
21	Rx2n	Receiver Inverted Data Output
22	Rx2p	Receiver	Non-Inverted
22	Rx2p	Receiver Non-Inverted Data Output
23	GND	Ground	1
24	Rx4n	Receiver Inverted Data Output
25	Rx4p	Receiver Non-Inverted Data Output
26	GND	Ground	1
27	ModPrsL	Module Present
28	IntL	Interrupt
29	Vcc Tx	+3.3 V Power supply transmitter
30	Vcc1	+3.3 V Power S upply
31	LPMode	Low Power Mode
32	GND	Ground	1
33	Tx3p	Transmitter Non-Inverted Data Input
34	Tx3n	Transmitter Inverted Data Input
35	GND	Ground	1
36	Tx1p	Transmitter Non-Inverted Data Input
37	Tx1n	Transmitter Inverted Data Input
38	GND	Ground	1

Notes:

1. Circuit ground is internally isolated from chassis ground.

Transceiver Optical's Other Pin Descriptions:

ModSelL Pin

The ModSelL is an input pin. When held low by the host, the module responds to 2-wire serial communication commands. The ModSelL allows the use of multiple QSFP modules on a single 2-wire interface bus. When the ModSelL is “High”, the module will not respond to any 2-wire interface communication from the host. ModSelL has an internal pull-up in the module.

ResetL Pin

Reset. LPMode_Reset has an internal pull-up in the module. A low level on the ResetL pin for longer than the minimum pulse length (t_Reset_init) initiates a complete module reset, returning all user module settings to their default state. Module Reset Assert Time (t_init) starts on the rising edge after the low level on the ResetL pin is released. During the execution of a reset (t_init) the host shall disregard all status bits until the module indicates a completion of the reset interrupt. The module indicates this by posting an IntL signal with the Data_Not_Ready bit negated. Note that on power up (including hot insertion) the module will post this completion of reset interrupt without requiring a reset.

LPMode Pin

Rayoptek PSM IR4operate in the low power mode (less than 1.5 W power consumption) This pin active high will decrease power consumption to less than 1W.

ModPrsL Pin

ModPrsL is pulled up to Vcc on the host board and grounded in the module. The ModPrsL is asserted “Low” when the module is inserted and deasserted “High” when the module is physically absent from the host connector.

IntL Pin

IntL is an output pin. When “Low”, it indicates a possible module operational fault or a status critical to the host system. The host identifies the source of the interrupt by using the 2-wire serial interface. The IntL pin is an open collector output and must be pulled up to Vcc on the host board.

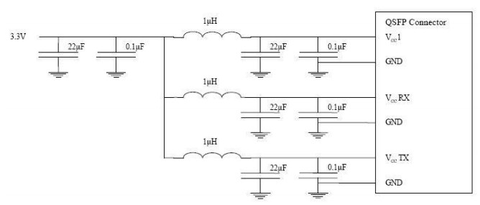

 Fiber Optic Transceivers' Power Supply Filtering

Optical Interface Lanes and Assignment

The optical interface port is a male MPO connector .The four fiber positions on the left as shown in below, with the key up, are used for the optical transmit signals (Channel1 through4). The fiber positions on the right are used for the optical receive signals(Channel 4 through 1). The central four fibers are physically present.

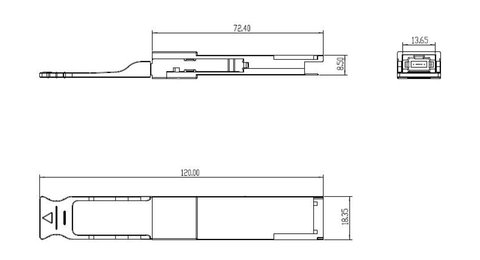

Package Dimensions

Ordering Information

Part Number	Description
BD-QSFP-CD10	Transceiver Optical, QSFP+,40Gb/s, CWDM wavelength 1310nm(4x10G) 10Km, 0~70℃ LC
