Break free from the limitations of copper! Baudcom's Single-Core Fiber Optic VGA KVM Extender delivers pristine, uncompressed VGA video, USB keyboard/mouse control, and analog audio over incredible distances—up to 80 kilometers—using just one single-mode fiber strand.
This robust transmitter/receiver system solves the critical challenge of maintaining perfect signal integrity in demanding environments. Experience flawless high-definition video (up to 1920x1200 / 1080P @ 60Hz) and responsive peripheral control without lag, degradation, or interference—even across vast distances or in electrically noisy settings.
Key Features & Benefits:
- Massive Reach: Extend signals up to 80km via single-core single-mode fiber, far exceeding copper capabilities.
- Crystal-Clear Video: Supports high resolutions up to 1920x1200 / 1080P @ 60Hz with built-in auto-equalization for smooth, stable, and artifact-free images.
- Seamless Control: Transmits USB HID signals for keyboard & mouse, allowing true remote computer/server operation.
- Integrated Audio: Supports external analog stereo audio transmission alongside video.

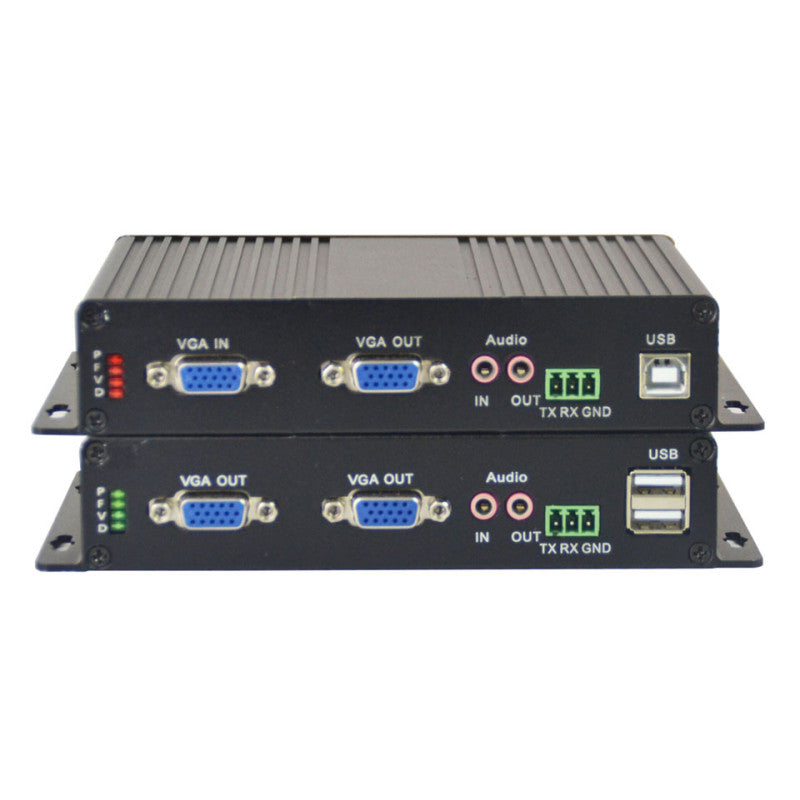

- Enhanced Flexibility: Dual VGA Outputs on the receiver simplify connectivity to multiple displays in complex setups.
- Ultimate Reliability: Engineered for mission-critical use with:
- EMI/RFI Immunity: Immune to electrical noise, ground loops, and lightning.
- ESD Protection: Built-in electrostatic discharge protection safeguards connected equipment.
- Secure Transmission: Fiber inherently resists eavesdropping and tampering.
- Plug & Play Simplicity: Automatic display mode recognition ensures quick, hassle-free installation – no software needed.
- Ideal Applications:
- Control Rooms & Command Centers
- Data Centers & Remote Server Management
- Industrial Automation & Harsh Environments
- Long-Distance Digital Signage & Multimedia Displays
- Broadcast Studios & News Centers
- Campus-Wide AV Distribution
- Security & Surveillance Monitoring Hubs
- The Solution You Need: When distance, signal integrity, and security are paramount, the Baudcom Fiber Optic KVM Extender provides a robust, high-performance, and future-proof solution. Experience uncompromised video, audio, and control over kilometers with pure fiber reliability.
VGA KVM Extender over Fiber Specification
| Parameter |
Detailed description |
| function |
Transmission Signal Class |
VGA Video |
| Transmission channel |
1 Channel |
| Fiber optics |
Input optical center wavelength |
Multimode (850nm);Singlemode (1310nm, 1550nm) |
| Transmit power |
-9.5～-3dBm average optical power@850nm |
| Optical Receiving Sensitivity |
-15dBm average optical power @850nm |
| Transmission code rate |
3G Hz |
| Transmission distance |
1m～2000m multi-mode fiber
1m～10km single mode fiber
|
| Power section |
Power supply |
Power supply from power adapter |
| Voltage range |
5VDC |
| Power Consumption |
<10W |
| VGA performance and interface |
Support VGA version |
VGA 1.2 |
| VGA Resolution |
1080p@60/1080i/720p |
| Support Video Color Format |
24-bit/Deep 30-bit/Deep 36-bit |
| Support Audio Format |
dts-hd/dolby-true hd/lpcm7.1/dts/dolby-ac3/dsd |
| Audio signal transmission format |
Left and Right Stereo Audio |
| Input and output TMDS signal |
0.5 to 1.5Vp-p(TMDS) |
| Input and output DDC signal |
5Vp-p(TTL) |
| Input Cable Length |
≤5m(AWG26 HDMI1.3 cable standard) |
| Output Cable Length |
≤5m(AWG26 HDMI1.3 cable standard) |
| Fiber Optic Interface |
Single mode single fiber SC fiber interface |
| operating environment |
Working Temperature |
0～55℃ |
| Storage temperature |
-20～70°C |
| Humidity (non-condensing) |
0～95% (AWG26 HDMI1.3 cable standard) |
| Fuselage Properties |

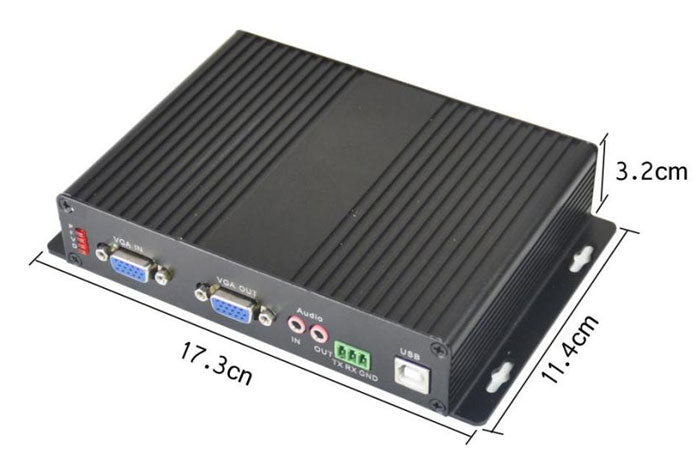

Dimensions(L×W×H) |
173*125*32mm |
| Material |
|
| Color |
Black color |
| Weight |
|
| reliability |
Mean Time Between Failure (MTBF) |
>30,000 hours |
| USB connector |
Interface Type |
USB1.0 interface, support keyboard, mouse |
