Seamless Integration: How Baudcom's PoE Fiber Media Converter Elevates Your Network

In the rapidly evolving landscape of enterprise networking, the integration of power over Ethernet (PoE) technology with fiber optic linkages has emerged as a key solution to meet the needs of high-speed, long-distance, and simplified network deployment. Among the pivotal devices facilitating this advancement is the PoE Fiber Media Converter, a sophisticated yet user-friendly device that combines fiber optic communication with PoE capabilities to streamline connectivity and power delivery across a network. This comprehensive overview aims to unpack the critical aspects of the PoE Fiber Media Converter, its working principles, applications, and how it is shaping the future of robust, flexible network infrastructures.



Understanding the PoE Fiber Media Converter



At its core, the PoE Fiber Media Converter is a hybrid device designed to convert electrical signals into optical signals and vice versa, while simultaneously providing Power over Ethernet functions to connected devices. Unlike conventional media converters that handle only data transmission, the PoE variants incorporate the ability to deliver power through Ethernet cables, greatly reducing the need for separate power supplies near remote devices. This dual functionality is especially advantageous for deploying IP cameras, wireless access points, VoIP phones, and other network devices in locations where electrical outlets are scarce or inconvenient.

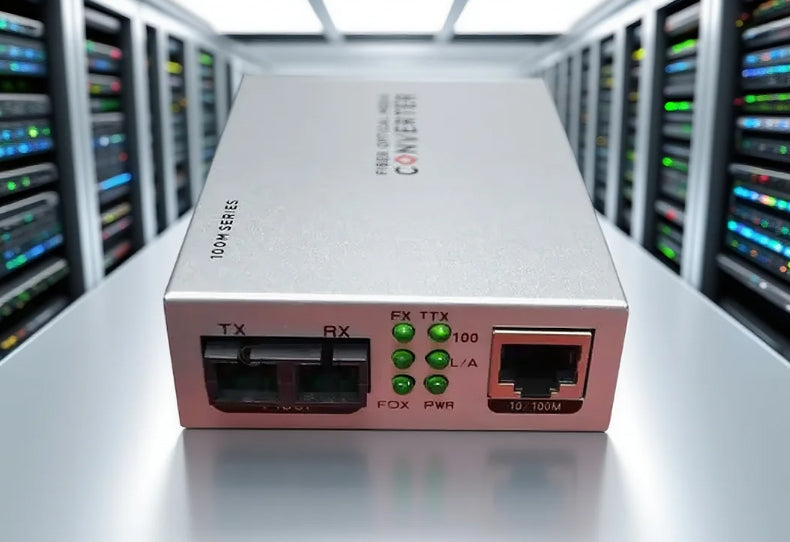

Devices like Baudcom's BD-100M-POE exemplify this dual functionality, offering 10/100Mbps Ethernet-to-fiber conversion while delivering 48V PoE power over Cat5 cables (up to 100m). Compliant with IEEE802.3af, it integrates a PSE controller for safe power monitoring and features LFP (Link Fault Pass-through) to auto-disable TX signals during link failuresensuring reliability in surveillance and industrial IoT deployments.



These devices are tailored for both gigabit Ethernet and fast Ethernet (10/100/1000 Mbps) network environments, supporting standard PoE (up to 15.4W) and PoE+ (up to 25.5W) protocols as outlined in IEEE standards. Common configurations include models featuring a single RJ45 Ethernet port paired with an SFP fiber port, as well as models with multiple Ethernet and fiber ports, accommodating diverse network topologies and scalability requirements.



Operational Mechanics of the PoE Fiber Media Converter



The operation of the PoE Fiber Media Converter hinges on two fundamental functions: optical-electrical conversion and power delivery over Ethernet. Let's explore how these elements work in tandem to facilitate versatile network connectivity:



1. Optical-Electrical Conversion: The device employs SFP (Small Form-factor Pluggable) modules or fixed fiber connectors to interface with fiber optic cables. When data arrives via the fiber port, it undergoes conversion from optical signals into electrical signals that can be interpreted by connected network equipment, and vice versa. This bi-directional conversion sustains high-speed data transmission over long distances with minimal signal loss.



Power Delivery via Ethernet: The RJ45 port serves a dual purposeit transmits data and supplies power. Inside the cable, four twisted pairs are utilized, with two pairs generally reserved for data transfer in 10/100/1000 Mbps networks, while the remaining pairs can carry direct current for PoE. The device's power sourcing equipment (PSE)typically an Ethernet switch or a dedicated PoE injectorsupplies power to the powered device (PD) via the Ethernet cable. The media converter ensures that power delivery complies with PoE standards, protecting devices from power surges or mismatched voltages.



The BD-100M-POE leverages SC/FC/ST connectors and supports both multimode (5km) and single-mode fiber (120km), with customizable wavelengths (850nm/1310nm/1550nm). Its cut-through mode handles 9K-byte packets efficiently, while built-in over-current protection safeguards connected devices.



The synergy of these functions allows administrators to extend network reach, eliminate the need for additional electrical wiring, and deploy devices in remote or hazardous locations seamlessly.



Practical Applications of the PoE Fiber Media Converter



The versatility of the PoE Fiber Media Converter makes it a staple in numerous network deployment scenarios:



- Surveillance Infrastructure: High-definition IP cameras often require long-distance, high-bandwidth connections, coupled with reliable power supply. The PoE Fiber Media Converter can bridge the gap between the camera's location and the main network, providing both data and power over a single fiber optic link.



- Wireless Network Expansion: Wireless access points (WAPs) are central to Wi-Fi coverage but often positioned in hard-to-reach locations. Deploying PoE Fiber Media Converters enables connection over extended distances without complex electrical wiring, ensuring stable wireless connectivity in large campuses or outdoor environments.



- VoIP and Communication Systems: VoIP telephones demanding both power and data connectivity benefit profoundly from PoE Fiber Media Converters, particularly in settings like conference rooms or outdoor installations where traditional power sources are inaccessible.



- Industrial and Outdoor Deployments: Environments with electromagnetic interference or exposure to adverse weather conditions increasingly rely on fiber optic connections. The added PoE function assures that devices like CCTV, sensors, and controllers receive consistent power, even in rugged environments.



Application Architecture and Deployment Scenarios



Consider a security camera installation in a sprawling industrial complex. The camera is mounted at a remote, outdoor location with no nearby power outlet. A fiber optic outbound cabling connects to a PoE Fiber Media Converter installed within a weatherproof enclosure. The converter, connected via fiber to a central switch, supplies power and data to the camera through a short Ethernet cable. This setup simplifies the infrastructure, reduces cabling clutter, and enhances reliability.



Similarly, in a smart city setup, fiber links connect multiple sensors and cameras to control centers, with PoE supplementation ensuring each device remains powered without the installation of dedicated electrical wiring at each node. Such deployments demonstrate the device's capacity for scalability and adaptability, enabling future-proof network designs.



Installation and Configuration Insights



To set up a PoE Fiber Media Converter for applications like IP camera surveillance, the following steps are generally recommended:



- Preparation: Assemble necessary hardwareincluding fiber modules, transceivers compatible with your fiber type (single-mode or multimode), Ethernet cables, and your network switch supporting PoE.



- Module Insertion: Install SFP modules into dedicated slots on the media converter and the switch, ensuring compatibility with your fiber type and speed specification.



- Fiber Connection: Connect fiber optic cables securely to the SFP modules, ensuring proper polarity and tight connections to minimize signal loss.



- Ethernet Wiring: Connect the IP camera or device to the media converter's Ethernet port using a Cat5e or Cat6 cable suitable for PoE applications.



- Powering Up: Connect the switch or PoE injector to power. Confirm that the device correctly identifies PoE mode and supplies power to the connected device, with status indicator lights providing quick feedback.



- Testing & Monitoring: Verify the data transmission and power delivery by checking device functionality and network performance metrics, adjusting settings if necessary.



Advancements in PoE Fiber Media Converters



Recent developments incorporate features such as:



- Extended Transmission Distances: With support for 10Gbps fiber modules, the operational range can extend well beyond traditional limits, facilitating inter-building or campus-wide networks.



- Gigabit PoE Support: Ensuring compatibility with demanding devices that require higher power levels, aligning with IEEE802.3bt standards.



- Management Capabilities: Some models come with managed or smart features, permitting remote configuration, monitoring, and troubleshooting, important for large-scale or mission-critical deployments.



- Ruggedized Designs: For industrial or outdoor environments, devices now often feature robust enclosures, temperature tolerance, and resistance to environmental factors.



Choosing the Right PoE Fiber Media Converter



When selecting a device, several parameters warrant consideration:



- Data Rate and Speed: Matches your network's speed requirementswhether 10/100/1000 Mbps or 10Gbps.



- Fiber Type: Single-mode fibers are suitable for long-distance links, while multimode fibers are often faster and more cost-effective within shorter spans.



- Fiber Optic Connectors and Modules: Compatibility with SFP modules and connector types such as SC, LC, or ST.



- PoE Standards Support: Compatibility with IEEE802.3af, IEEE802.3at, or IEEE802.3bt standards to ensure power delivery capabilities meet device needs.



- Environmental Conditions: Industrial-grade appliances for applications in extreme temperature or hazardous environments.



- Port Configuration: The number and type of Ethernet and fiber ports needed for your network topology.



- For small-to-mid-scale deployments requiring 100Mbps speeds, cost-effective options like Baudcom's BD-100M-POE provide IEEE802.3af compliance, LFP, and DIP-switch configurability. For Gigabit+ speeds, consider managed models with 10Gbps support.



Future Outlook and Trends



As the demand for high-bandwidth, long-distance, and smart network solutions grows, PoE Fiber Media Converters are poised to become increasingly central. Trends point toward integration with managed network features, higher power support, and even wireless functionality embedded within these devices. The convergence of fiber optics with PoE solutions promotes seamless, efficient, and scalable network architectures capable of supporting intelligent transportation systems, smart city initiatives, and industrial IoT projects.



In conclusion, the PoE Fiber Media Converter exemplifies a strategic confluence of fiber optic technology and powered Ethernet, enabling versatile, long-range, and efficient network deployment. Its ability to simplify wiring, extend transmission distances, and provide reliable power makes it an indispensable component of modern enterprise and industrial networks. By understanding its operational principles and applications, network engineers can harness its full potential to construct resilient, flexible, and future-ready infrastructures that meet the demands of tomorrow's interconnected world.
