How a Fiber Media Converter Extends PoE Networks and Solves Power Delivery Issues

You often run into problems with copper cables for power over ethernet. IEEE standards say copper cables can only go 100 meters. After that, signal quality and power delivery get worse. Copper-to-fiber media converters help fix these issues. A fiber media converter lets you make your network much longer. You can also power devices that are far away. New copper-to-fiber media converters support IEEE802.3at/af. They have dual-port choices and are easy to set up. Media converters work well in many places. These media converters let you connect, power, and protect your network devices. You do not have to worry about distance. You can count on media converters to work well. Media converters keep your network steady and working well. Media converters send both data and power. Media converters cut down on signal loss and interference. Media converters make your network more flexible. Media converters work with many kinds of devices. Media converters are simple to set up and use.

Key Takeaways

• Fiber media converters help PoE networks go farther than copper cables. Copper cables can only reach 100 meters. Fiber optic cables can go much longer distances. These converters let devices connect over these long distances.

• These converters lower signal loss. They also protect your network from electrical noise and interference. This keeps your connection stable and reliable.

• Many fiber media converters work with Power over Ethernet (PoE). They send both data and power to devices like IP cameras, wireless access points, and VoIP phones. You do not need extra power cables for these devices.

• Media converters are simple to set up. They have features like auto-negotiation and auto MDI-MDIX. These features save time and help you avoid wiring mistakes.

• Using fiber media converters makes your network more flexible. It also saves money and helps your network grow in the future. This is very helpful in places like factories, campuses, and outdoor areas.

Power Over Ethernet Limits

Distance and Power Loss

Power over ethernet has a strict distance limit. The IEEE802.3af and IEEE802.3at standards say cables can only be 100 meters long. This rule is because of how Ethernet works. It is not just about power delivery. If you use cables longer than 100 meters, you might have data delays. You could also lose packets. You should always use at least Cat5 cables for a stable network.

Here is a table that shows the main limits for power over ethernet:

Some power is lost as it moves through the cable. The standards make sure your device still gets enough power. If you need to connect devices farther away, you will have problems. Media converters can help with this. They change the signal from copper to fiber. Fiber can go much farther without losing power or data quality. You can use media converters to reach far devices. This keeps your network strong.

Signal Interference

Copper cables can pick up noise from many places. This noise can hurt your power over ethernet network. Problems can happen if cables are near lights, other cables, or electronics. Here are some common causes and effects of signal interference:

• Cables or power lines nearby can make noise.

• Light fixtures and electronics can cause interference.

• Too much noise lowers the signal-to-noise ratio. This makes your network less reliable.

• If the signal-to-noise ratio drops below 3 dB, you may lose data or have slow speeds.

• Heat from power transmission can also lower signal quality.

You can fix these problems by using the right cables and installing them carefully. Media converters give you another way to avoid interference. Fiber optic cables do not pick up electrical noise. When you use media converters, you protect your network from outside noise. You also get a more stable and reliable connection. Media converters let you build networks in places with lots of electrical noise. You can trust media converters to keep your power over ethernet devices working well.

Fiber Media Converter Function

Signal Conversion

Ethernet-to-fiber media converters help connect copper and optical networks. These devices change 10/100Base-TX signals from copper into 100Base-FX optical signals. This lets your network go much farther than 100 meters. For example, a fiber media converter can send data up to 2 kilometers with multimode fiber. Some models can even reach 30 kilometers using single-mode fiber.

Ethernet-to-fiber media converters follow important standards. They meet IEEE 802.3, IEEE 802.3u, and IEEE 802.3x rules. These standards keep your data moving fast and steady. The converter uses auto-negotiation to match speed and duplex settings. You do not have to worry about speed mismatches or connection issues.

Note: Many media converters have Link Fault Pass-through (LFP). If a link fails on copper or optical, the device tells you right away. This helps you find and fix network problems fast.

Modern fiber media converters have different fiber connector types. You can pick SC, LC, or SFP slots. These connectors let you use the best optical cable for your job. RJ45 ports are for the copper side, so you can connect your current network devices easily.

Here is a table showing main features of ethernet-to-fiber media converters:

Auto MDI-MDIX on RJ45 ports makes setup easy. The converter checks if you use a straight or crossover cable and adjusts itself. You do not need to worry about cable types or manual changes. This feature saves time and helps avoid mistakes during setup.

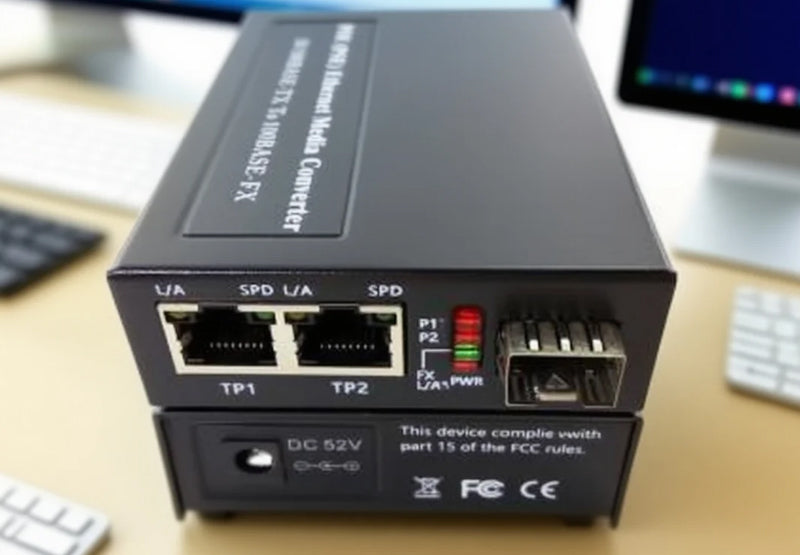

Dual-port ethernet-to-fiber media converters give you more options. You can connect two copper devices to one optical link. Some models have port isolation, which keeps your network safe and steady. Dual-port designs also support network backup. If one link fails, the other keeps your devices connected.

PoE Support

Ethernet-to-fiber media converters do more than move data. Many models support Power over Ethernet (PoE). You can send both power and data to far-away devices like IP cameras, wireless access points, or VoIP phones with one cable.

A fiber media converter that supports IEEE802.3af and IEEE802.3at can give up to 30 watts of power per port. This means you can power devices that need more energy, like PTZ cameras or strong access points. The converter acts as Power Sourcing Equipment (PSE), sending power over Cat5 or Cat5e cables up to 100 meters.

Here is a table with main PoE features of ethernet-to-fiber media converters:

You can use these media converters in many places. Their small, fanless design keeps them quiet and dependable. You do not need extra power cables for your devices. This makes setup faster and neater.

Ethernet-to-fiber media converters with PoE help you build networks where power outlets are hard to find. You can put cameras on poles, access points in halls, or phones in far offices. The converter sends both data and power over long distances with optical fiber, then gives PoE to your device through copper.

Tip: Pick a fiber media converter with two RJ45 ports if you want to connect and power two devices at once. This setup is great for big campuses or factories where you need both distance and flexibility.

Ethernet-to-fiber media converters mix the best of copper and optical networking. You get long-distance data, steady power, and easy setup. These media converters help you solve real network problems every day.

Benefits of Fiber Media Converters

Extended Reach

Sometimes, you need to connect devices that are far away. Copper Ethernet cables only work up to 100 meters. This can be a problem in big buildings or outside areas. Media converters help by turning electrical signals into optical signals. Optical signals can travel much farther without losing quality.

Here is a table that shows how far each cable can go:

Copper cables cannot go farther, even if you use better ones. Media converters let you connect across campuses or between buildings. You do not need extra switches or power along the way. This makes your network simple and saves money.

Tip: Use single-mode fiber if you need to go the farthest. You can reach up to 80 kilometers with the right media converters.

EMI Immunity

Copper cables can get noise from power lines or machines. This noise is called electromagnetic interference, or EMI. EMI can make your network slow or cause data loss. Media converters let you use optical signals, which do not get EMI.

Fiber optic cables use light to send data, not electricity. This means they do not pick up any electrical noise. You get a steady connection, even near lots of machines. Here is a quick comparison:

• Copper wires can get crosstalk and outside noise.

• Fiber optic cables do not have this problem.

• This makes media converters great for factories, hospitals, and military places.

Media converters keep your network safe from interference. Your data will arrive safely, even in tough places.

Flexible Deployment

Media converters give you many ways to build your network. You can use both copper and optical cables together. This helps you upgrade old networks or reach far places.

You can use media converters in these ways:

• Enterprise networks that mix fiber and copper for better speed.

• Data centers that connect servers and switches with both types of cables.

• Long-distance links for campuses or remote offices.

• Security systems where copper cables are hard to run.

• Point-to-point fiber networks for simple, long links.

• High-density fiber networks in hospitals or schools.

• Choosing between different types of media converters for each place.

Media converters help you save time and money. You do not need new power outlets for every device. PoE fiber media converters send both data and power in one cable. You can put cameras or phones wherever you want.

Note: Industrial media converters work well outdoors. They handle big temperature changes and protect against surges.

Media converters support many connector types, like SC, LC, and BiDi. You can pick the one you need. Auto MDI-MDIX on RJ45 ports makes setup easy. You do not have to worry about cable types or wiring mistakes.

Media converters make your network ready for the future. You can add more devices or upgrade speeds as you grow. Your network will be strong, reliable, and ready for anything.

Applications

IP Cameras

Sometimes, you need to put IP cameras far away. Media converters help connect and power these cameras. You can use them for big campuses or factories. Media converters let your PoE network go past 100 meters. This means you can put cameras in parking lots or on fences. You can even put them along highways. Media converters change Ethernet signals to fiber and back again. This gives you clear video with no interference.

• Media converters let you set up cameras in many ways.

• You can power cameras with PoE, so no extra outlets are needed.

• Rugged media converters work well outside or in tough places.

• Some models show you if a link has a problem.

Media converters keep your data safe from interference and help your cameras work well.

Wireless Access Points

If you want Wi-Fi in far or outdoor spots, media converters help. Wireless access points need both data and power. Copper cables cannot go far enough. Media converters let you use fiber optic cables for long distances. Near the access point, a media converter changes fiber back to Ethernet and adds PoE power.

1. You can put access points on fields, in warehouses, or outside.

2. Media converters work with different fiber types and speeds.

3. Outdoor media converters have strong cases and protect against surges.

Media converters help you build strong Wi-Fi where copper cables cannot reach.

VoIP Phones

VoIP phones need steady connections and power. Media converters give you both, even in big buildings. You can use them for phones in offices, schools, or hospitals. Fiber optic links keep calls clear by blocking noise.

Media converters follow IEEE standards, so phones get the right power. Some models let you manage your network from far away. This keeps your phones working and easy to fix.

Media converters are small, quiet, and follow standards. They help power and connect devices anywhere.

Media converters help fix PoE distance and power problems. They link fiber and copper networks, so you can reach far devices. Media converters cut down on noise and keep your network strong. They send power to IP cameras, phones, and access points over long cables. Media converters let your network be fast and easy to set up. You can use them in hard places, like outside or in factories. Using fiber with media converters saves money on long cable runs. You can control media converters from far away with remote management. They follow IEEE rules to give safe power. Pick media converters if you want a network that is strong, flexible, and ready for the future.

FAQ

What does a fiber media converter do in a PoE network?

A fiber media converter helps copper Ethernet devices use fiber optic cables. This means your power over ethernet network can go much farther than 100 meters. The device sends both data and power to devices that are far away.

Can I use fiber media converters for outdoor cameras?

Yes, you can use fiber media converters with outdoor IP cameras. These devices keep your data safe from interference. You can use PoE to power cameras in places copper cables cannot reach.

How do fiber media converters prevent signal interference?

Fiber media converters use optical signals, not electrical ones. This stops problems from electromagnetic noise. Your power over ethernet devices get a steady connection, even near lots of electrical gear.

What devices work with ethernet-to-fiber media converters?

You can connect IP cameras, wireless access points, and VoIP phones. Media converters work with many devices that use power over ethernet. You can use them in schools, factories, or big offices.

Do I need special cables for copper-to-fiber media converters?

You need fiber optic cables for the optical side and Ethernet cables for the copper side. The media converter moves data between both cable types. You do not need extra equipment for most setups.
