As one of the core components in the telecommunications industry, optical modules play a pivotal role in driving the continuous development and innovative application of fiber-optic communication technology. From the invention of the laser in the 1960s to today's high-speed, multifunctional optical modules, the industry has undergone a spectacular transformation. Currently, rapid advancements in emerging technologies such as 5G, data centers, and cloud computing have intensified demands for high data rates, high density, compact size, and low power consumption in optical communication equipment. These requirements act as a powerful catalyst for ongoing innovation in optical modules.
This article explores several mainstream types of optical modules—such as SFP, Xenpak, XFP, SFP+, SFP28, CFP28, and QSFP—highlighting their characteristics, advantages, and suitable applications. The goal is to provide a comprehensive understanding of the technological evolution and application trends in modern optical modules.
1. SFP (Small Form-factor Pluggable)

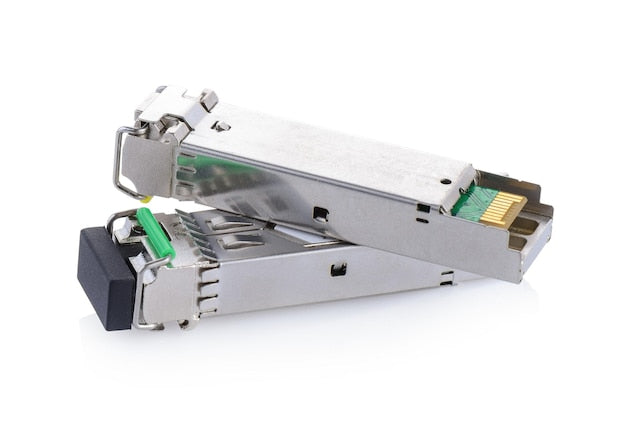

The launch of the SFP module marked a significant milestone in the miniaturization of optical components. With dimensions of approximately Φ13.4mm×56.5mm, this small, lightweight, and highly compatible module has become a popular choice in telecommunications, enterprise networks, and data center fiber connections. Initially supporting 155 Mbps, SFP modules have evolved to support speeds from 1 Gbps up to 28 Gbps, accommodating a broad range of high-speed applications.
Designed with a single-channel structure—comprising one transmitter (Tx) and one receiver (Rx)—its straightforward architecture simplifies deployment and maintenance. SFP modules support various fiber types, including single-mode and multi-mode fibers, and can employ different laser chips like DFB lasers or VCSELs depending on the application. Their cost-effectiveness, versatile compatibility, and product diversity have made them the preferred choice for small and medium enterprises, storage networks, corporate parks, and access networks.
Technically, the SFP standard package ensures device compatibility across manufacturers, facilitating upgrades and maintenance. Transmission distances generally range from a few hundred meters up to 120 kilometers, determined by fiber type and laser wavelength. In practical scenarios, SFP modules are broadly used in small to medium enterprises, data centers, and broadband access environments. For longer-distance connections, SFP modules can be paired with appropriate fiber types to achieve several kilometers of transmission, while SFP+ is favored for higher-speed connections. Overall, SFP modules provide stable, flexible solutions that meet diverse networking needs.
2. Xenpak
Xenpak modules are expressly designed for 10Gbps Ethernet applications. Typically larger than SFPs, with more complex internal structures, Xenpaks support multi-channel configurations and tend to consume more power and occupy more space. Their emergence historically represented a mainstream solution for high-speed network connections, especially within telecom carriers and large data centers.
The term "X" signifies the Roman numeral for ten, indicating 10Gbps speeds. Its larger size primarily accommodates more complex high-speed circuitry and multi-channel optical configurations. However, the bulkiness limits deployment flexibility, and the associated higher costs have prompted a shift toward more compact, cost-effective standards as industry demands evolve.
Xenpaks feature an integrated (monolithic) design, offering high stability and integration. They support lasers with multiple wavelengths to extend transmission ranges. Their advantages include higher bandwidth capabilities and improved heat dissipation compared to earlier modules. As standards have advanced, architectures have been refined to support even higher data rates.
Depending on wavelength and fiber type, Xenpak transmission distances can vary from a few hundred meters to several tens of kilometers. They are typically employed in data center fiber links, core broadband networks, and high-speed storage solutions. Their strengths lie in stable, high-bandwidth transmission, although their larger size, higher power consumption, and cost remain challenges.
3. XFP
XFP modules (10 Gigabit Small Form-factor Pluggable) are more compact than Xenpaks, measuring roughly 63.5mm×65mm, and support 10Gbps speeds. By overcoming the size limitations of Xenpak, XFPs utilize advanced manufacturing processes, exhibit broad compatibility, and support various optical chips and modulation formats. They are commonly connected via LC fiber connectors.
Key features of XFP include support for multiple fiber types (single-mode and multi-mode) and multiple laser wavelengths, ensuring flexible trade-offs between transmission distance and speed. Their typical reach spans from tens of meters up to several tens of kilometers, and they support hot-swapping, simplifying device maintenance and upgrades. Technologically, XFP modules support protocols such as 10G Ethernet, optical channels, and SONET/SDH, demonstrating broad compatibility.
In terms of advantages, XFP modules offer flexibility in wavelength and fiber choice, suitable for enterprise data center interconnections, operator backbone networks, and storage systems. Their longer transmission distances make them ideal for multi-site and long-haul applications demanding high bandwidth and low latency. Despite being slightly larger than SFPs, XFP modules constitute a key component in high-speed networks, providing high reliability and operational efficiency.
4. SFP+ (Enhanced SFP)
SFP+ modules are an upgrade over the original SFP, designed for 10Gbps Ethernet and fiber channel applications, emerging in the early 2010s. The surge in cloud computing and big data has increased the demand for fast, flexible network connections, turning SFP+ into a mainstream solution.
Technically, SFP+ maintains the compact, hot-pluggable design of the original SFP but supports 10G speeds with improved electrical performance and shielding, effectively reducing error rates and latency. Its applications include high-speed links bridging data centers, core switches connecting service providers, and storage networks.
Transmission distances range from a few meters to several hundred kilometers, depending on fiber type and laser wavelength. Its wide adoption in high-speed Local Area Networks (LANs) and Storage Area Networks (SANs) underscores its importance. The bandwidth enhancement over traditional SFP modules ensures compatibility with future-high speed networking trends.
5. SFP28 (Small Form-factor Pluggable 28)
Introduced in 2014 as an upgrade to SFP+, SFP28 supports 25Gbps data rates, responding to the needs of cloud service providers and data centers for even higher bandwidth capacity. Its development was driven by continuous demands for increased throughput and higher-density access points, aiming to streamline module integration and maintenance while providing superior performance.
The defining features include high integration, low latency, and low power consumption. SFP28 modules are backward compatible with SFP+ interfaces and support protocols such as 25G Ethernet, Fibre Channel, and emerging high-speed standards. Their technical advantages encompass efficient signal integrity and elevated transmission efficiency, ensuring reliable data transfer for large-scale data movement.
Range-wise, SFP28 modules typically serve distances from hundreds of meters up to tens of kilometers, depending on fiber type and laser wavelength. Their usage spans ultra-high-speed enterprise networks, cloud infrastructure, storage systems, and massive data clusters, offering scalable, high-performance connectivity.
6. CFP28
CFP28 modules, capable of supporting 100Gbps typically at 28Gbps per lane, emerged in the 2010s as future-oriented solutions for ultra-high-speed, high-bandwidth applications. They are tailored for high-end data communication, quantum encryption links, and rapid optical transmission scenarios, driven by the quest for larger bandwidth and lower latency, with future-proof considerations.
Structurally, CFP28 modules feature larger enclosures supporting multimode and single-mode fibers, compatible with various wavelengths and modulation technologies. Their key advantage lies in supporting extremely high transmission speeds—25Gbps and beyond—and integrating multiple lanes and channels, massively boosting capacity within a compact footprint.
Transmission distances can reach tens of kilometers, with some variants supporting even longer-range links. Their typical applications include large-scale, transcontinental data centers, submarine optical cables, and advanced research networks. Due to their size and power demands, they are primarily deployed in core network infrastructure and specialized high-capacity transmission scenarios.
7. QSFP Series (Quad Small Form-factor Pluggable)
QSFP modules feature four independent channels, each capable of supporting high data rates, and first appeared in the mid-2000s. Designed for high-density, high-speed interconnections, they support standards of 40Gbps and above. Their emergence addresses the need for densely packed ports with greater bandwidth in data centers and high-performance computing environments.
Characterized by a compact layout, high integration, and support for multiplexing techniques (such as wavelength division multiplexing), QSFP modules accommodate both multimode and single-mode fibers. Protocol support spans 40GbE, Fibre Channel, InfiniBand, among others, enabling robust high-speed cluster interconnects.
Transmission distances vary from several hundred meters up to 40 kilometers, depending on the laser and fiber type. As core components in data centers, supercomputers, cloud infrastructure, and backbones of telecommunications networks, QSFP modules are instrumental in boosting connectivity efficiency and supporting future scalable expansion.
8. Technological Trends and Future Outlook
The progression from SFP to QSFP reflects a persistent pursuit of higher speeds, smaller sizes, and multifunctionality, spanning from 1 Gbps to hundreds of Gbps or even Tbps. As silicon photonics technology matures and markets for ultra-dense, low-power modules expand, future optical modules will aim for even higher integration, reduced energy consumption, and lower manufacturing costs—thus laying a robust foundation for 5G, smart cities, industrial internet, and beyond.
The expansion of fiber optic communication as a backbone of modern information networks continually elevates demanding standards for optical transceivers—not just in capacity and speed but also in miniaturization, cost-efficiency, and maintenance convenience. Modular miniaturization trends, exemplified by SFF (Small Form-factor) modules, facilitate increased port densities, reduce system costs, and improve overall network flexibility. Compatibility with diverse interfaces—ranging from SC to LC and featuring increasingly cost-effective plastics instead of metal—supports this evolution, making high-bandwidth networks more accessible.
Industry efforts focus on reducing costs and energy consumption through advanced packaging technologies, wafer-level integrated designs, and innovative assembly processes. The adoption of advanced semiconductor materials like GaAs and SiGe enhances the performance and yields of high-speed amplifiers and laser sources. Lower voltage supplies further contribute to power savings, even as port counts grow exponentially.
Advances in high-speed modulation techniques, laser innovations, and thermal management strategies address the challenges of signal integrity and heat dissipation at rates of 40Gbps, 100Gbps, and beyond. These innovations ensure that the demands of big data, artificial intelligence, and real-time processing can be met effectively.
Long-distance transmission remains a critical focus, with the employment of 1550 nm wavelength modules paired with optical amplifiers pushing the boundaries of reach and cost-efficiency. This facilitates broader network coverage, from metro to transoceanic scales, supporting international data exchange.
The industry's move toward hot-pluggable modules aligns with the need for flexible maintenance and system upgrades, with standards like GBIC and SFP incorporating plug-and-play features that significantly simplify network management.
Future optical modules will continue evolving toward greater density, higher speeds, affordability, extended reach, and ease of maintenance. With technological innovations and increasing market demands, they are set to remain at the core of global high-speed optical networks, powering the digital infrastructure of the future.
