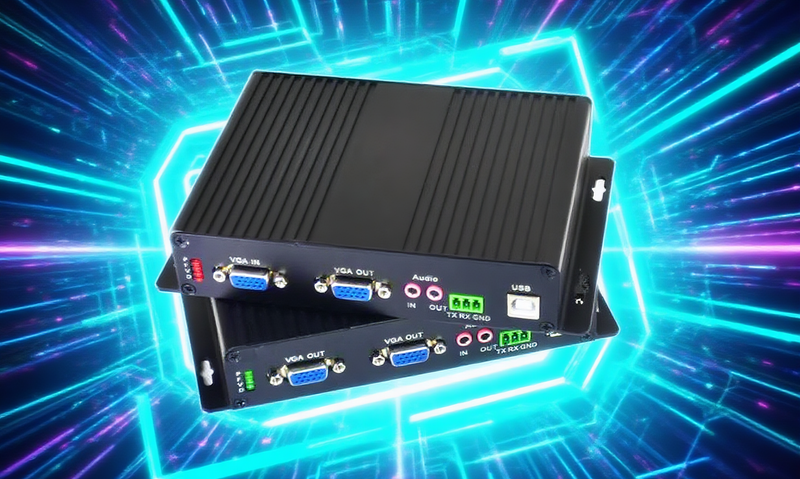

As computer technology continues to advance, display interfaces play a critical role in data transmission and connecting display devices. From early analog signal transmission to today's high-definition digital displays, interface technologies have been constantly innovating and evolving. Among them, the VGA (Video Graphics Array) interface, introduced in the late 1980s, was once widely used across various display devices and served as an important bridge between computers and monitors. While modern digital interfaces have largely replaced VGA, solutions like Baudcom's Uncompressed VGA Fiber Optic KVM Extender demonstrate how this legacy technology can still deliver value in professional environments by overcoming traditional VGA limitations through fiber optic transmission. This article explores the technical features, development history, current applications, and future trends of the VGA interface.
1. Origin and Development of the VGA Interface
The VGA interface was introduced by IBM in 1987 as its third-generation display standard, aiming to provide a high-quality graphics display solution. Its emergence marked the transition from text-only displays to rich graphical and multimedia content. Initially, VGA was mainly used to connect personal computers and CRT monitors, supporting a maximum resolution of 640×480 pixels and color depths of 16 or 256 colors.
With the improvement of computer graphics processing capabilities and increasing user demand for better visual experiences, the VGA interface underwent several upgrades. By the late 1990s, it began supporting higher resolutions and richer color outputs, such as 800×600, 1024×768, and even higher. It also introduced various synchronization signal standards to adapt to different types of display devices. Additionally, several variants of VGA were developed, such as SVGA (Super VGA) and XGA (Extended VGA), expanding its application range further.
2. Technical Characteristics of the VGA Interface
The VGA interface uses a 15-pin D-sub (D-subminiature) connector, which includes three main signal groups: analog Red, Green, and Blue (RGB) signal lines, horizontal sync (HSYNC) and vertical sync (VSYNC) lines, and ground wires. It transmits analog signals, relying on voltage variations to represent different colors and brightness levels.
1) Analog Signal Transmission
The core of VGA technology lies in analog signal transmission. Each color channel (red, green, blue) uses different voltage levels to represent color intensity, while sync signals ensure proper synchronization of the display content. However, analog signals are prone to interference and degradation, especially during long-distance transmission, which can lead to image distortion and reduced signal quality.
2) Signal Standards and Compatibility
VGA defines strict standards for signal voltage, levels, and timing to ensure compatibility between devices. These standards include horizontal and vertical scan frequencies, sync signal polarities, and more. Manufacturers design their display devices within these parameters, making VGA one of the most widely compatible display interfaces of its time.
3) Bandwidth and Resolution
The bandwidth of the VGA interface limits its maximum resolution and refresh rate. While early VGA supported 640×480 resolution, later versions could handle 1024×768, 1280×1024, and higher. However, the limitations of analog bandwidth eventually made it difficult to meet the growing demand for high-definition displays.
3. Current Applications of the VGA Interface
Although digital interfaces like DVI, HDMI, and DisplayPort have increasingly replaced VGA in recent years, VGA still has some presence in certain fields.
1) Legacy Display Devices
Many older CRT monitors, projectors, and industrial devices are still equipped with VGA ports. Because VGA is cost-effective and highly compatible, some organizations continue to use it for maintaining older equipment.
2) Transitional Devices
During the early stages of digital interface adoption, many newer devices still included VGA ports to support older systems during the transition. For example, some laptops, projectors, and multi-function monitors were equipped with both digital and VGA interfaces.
3) Gradual Decline in Modern Applications
As high-resolution technologies like 4K and 8K become mainstream, VGA is being phased out. Digital signal transmission offers better resistance to interference and higher bandwidth, supporting better image quality. Many manufacturers have eliminated VGA from new products in favor of HDMI, DisplayPort, and other digital interfaces.
4. Technical Limitations and Challenges of VGA
While VGA played a vital role in its prime, it also comes with inherent limitations.
1) Limitations of Analog Signals
Analog signals are susceptible to noise and signal degradation, which can result in lower image quality, especially over longer distances. Unlike digital signals, analog signals struggle to maintain consistent quality.
2) Restrictions on Resolution and Refresh Rate
Due to its limited bandwidth, VGA cannot support very high resolutions or refresh rates. As high-definition and multi-screen displays become common, VGA can no longer meet the requirements of modern standards.
3) Compatibility and Future Viability
Digital interfaces offer stronger resistance to interference, faster data transfer rates, and richer display features. With display technologies trending toward full digitization, VGA's space in the market continues to shrink.
5. Future Development Trends and Outlook
As display technologies continue to evolve, the future space for VGA is limited, though its historical significance remains.
1) Complete Replacement by Digital Interfaces
Digital interfaces such as HDMI, DisplayPort, and USB-C are gradually replacing VGA due to their high bandwidth, support for HD audio and video, and multi-display capabilities. In the future, VGA may disappear from new devices, though it may still serve a role in specific scenarios.
2) Use of Compatibility Converters
To connect older devices with modern displays, many VGA-to-HDMI or VGA-to-DisplayPort converters are now available on the market. These tools have extended VGA’s lifespan and support the bridging of different generations of equipment.
3) Ongoing Use in Industrial and Legacy Applications
In some industries like aerospace, military, or factory automation, where device stability and compatibility are crucial, VGA interfaces are still in use. In certain industrial environments, the simplicity and reliability of analog signals still offer benefits.
4) Innovation and New Interface Technologies
Future display technologies may adopt advanced interfaces like fiber optics or wireless transmission, which could fundamentally change how devices connect. As an analog standard, VGA will eventually fade from mainstream use.
6. Conclusion
The VGA interface, as a significant milestone in computer display technology, played a crucial role in the rise of digital displays. Its simplicity and compatibility made it central to early computer development. However, with the rise of HD and digital signal transmission, VGA has gradually been replaced by newer digital standards. Still, its historical contribution is undeniable, and its evolution has provided valuable lessons for more advanced interfaces. In the future, as display technologies continue to innovate, VGA usage will continue to decline, though its role in specialized fields and in tech history will remain memorable.
In short, the VGA interface marks an important point in the evolution of display technology. It witnessed the transition from analog to digital and reminds us of the need for constant innovation to meet growing visual demands. Tomorrow’s display technologies will be more efficient, intelligent, and diverse, while VGA—though a classic—will be forever remembered in the history of computer display development.
