1. Overview of Industrial PoE Switches
1.1 Definition and Core Features
Industrial PoE switches are network devices specifically designed for harsh industrial environments. They combine Ethernet switching and Power over Ethernet (PoE) functions, enabling the direct power supply and data transmission to terminal devices through network cables. Their core characteristics are robustness, durability, stability, and reliability.

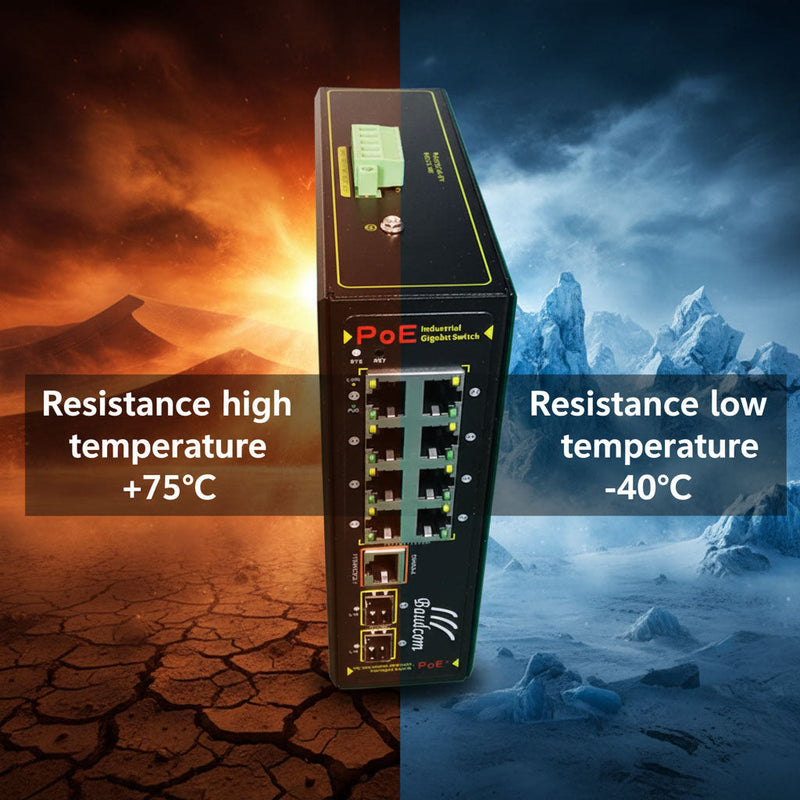

These characteristics are exemplified in modern managed switches, such as the Baudcom 10-Port Gigabit Managed Industrial POE Switch (BD-S33108PFM). This switch is designed for harsh conditions with a wide operating temperature range (-40°C to 75°C), supports key industrial protocols, and provides PoE power adhering to IEEE 802.3af/at standards, making it a robust connectivity and power solution for demanding applications.
|
Characteristics |
Specific Description |
|
High Reliability |
Adopts redundant power supply, fanless design, supports ring network redundancy protocol, ensuring continuous stable operation 24/7. |
|
Strong Environmental Adaptability |
Wide temperature working range (usually -40°C to 75°C), high protection levels (IP30/IP40/IP67), resistant to vibration and impact. |
|
Strong Anti-interference |
Through strict electromagnetic compatibility design, able to work stably in industrial sites with strong electromagnetic interference. |
|
Industrial Protocol Support |
Supports industrial Ethernet protocols such as Profinet, EtherCAT, Modbus-TCP, facilitating integration into industrial control systems. |
|
PoE Power Supply |
Supports IEEE 802.3af/at/bt standards, capable of directly powering devices such as cameras, APs, sensors through network cables. |
1.2 Differences from Ordinary Commercial PoE Switches
Industrial PoE switches are not simply reinforced versions of commercial switches; there are fundamental differences in design philosophy and performance indicators.
|
Comparison Dimension |
Industrial PoE Switches |
Ordinary Commercial PoE Switches |
|
Operating Temperature |
Wide temperature range (-40℃ ~ 75℃) |
Normal temperature range (0℃ ~ 40℃) |
|
Protection Level |
High (IP30, IP40, IP67, etc.) |
Low (usually no special protection) |
|
Electromagnetic Compatibility |
Industrial grade, strong anti-interference |
Commercial grade, weaker interference ability |
|
Power Supply Design |
Redundant wide-voltage input (e.g., DC 24/48V) |
Single AC input |
|
Mean Time Between Failures |
Extremely long (usually >10 years) |
Shorter |
|
Installation Method |
DIN-Rail mounting |
Desktop or rack mounting |
|
Cost |
Higher |
Lower |
|
Working environment |
Indoor and outdoor |
Indoor |
A practical example of these industrial-grade traits is the Baudcom BD-S33108PFM switch, which operates reliably in extreme temperatures and offers managed features crucial for industrial network stability.
2. Key Technology Analysis
2.1 Reliable Power Supply Design
Wide voltage input: Supports DC 24/48V or wide-range AC input, suitable for the unstable voltage conditions in industrial circumstances.
High power output: Supports PoE++ standard, with a maximum of 60W or even 90W power per port, meeting the demands of high-power devices such as PTZ cameras and wireless APs.
Complete protection: Equipped with overcurrent, overvoltage, short circuit, and surge protection to prevent damage to devices caused by power supply issues.
Power redundancy: Supports dual power input, automatically switching when one fails to ensure uninterrupted system operation.
2.2 Rigorous Environmental Adaptability Design
Wide temperature operation: Components are meticulously selected to enable normal functions in extremely cold or hot environments.
Sturdy casing and protection: Metal housing with high IP protectionlevels, effectively resisting dust, moisture, and corrosive gases.
3. Main Application Scenarios
Industrial PoE switches are the foundation for building industrial Internet of Things and intelligent manufacturing networks, widely used in:
|
Application Field |
Specific Applications and Value |
|
Industrial Automation |
Connect PLCs, HMIs, robots, IO modules, etc., supply power to sensors and actuators, realize interconnection of production line equipment, and simplify wiring. |
|
Intelligent Security Monitoring |
Power IP cameras outdoors/within workshops and transmit video; high reliability ensures uninterrupted operation of the monitoring system. |
|
Wireless Coverage |
In scenarios such as factories and ports, power industrial-grade wireless APs and build network access, providing wireless connectivity for mobile terminals and IoT devices. |
|
Intelligent Transportation |
Applied in rail transit, highways, providing rugged network connections for onboard equipment, traffic lights, violation cameras, and more. |
|
Energy and Municipal Infrastructure |
In substations, wind farms, photovoltaic energy stations, and municipal facilities such as smart street lights and manhole cover monitoring, enabling remote device power supply and data collection. |
4. Future Development Trends
Higher Integration and Intelligence: Integrate edge computing capabilities to perform data preprocessing and intelligent analysis locally on the switch; support AI-driven network self-optimization, fault prediction, and remote operation and maintenance.
Support for TSN: Integrate Time-Sensitive Networking technology to provide a standardized deterministic network foundation for advanced manufacturing processes that require ultra-high precision time synchronization, such as motion control.
More Powerful Power Supply and Energy Efficiency Management: Keep pace with PoE technology development by providing higher power; introduce intelligent power management to dynamically adjust power based on device status, achieving energy saving.
Deep Integration with Industrial Internet of Things: Strengthen support for IoT protocols such as OPC UA, MQTT, and more, seamlessly connect with industrial cloud platforms, and assist in building digital factories.
Enhanced Network Security: Built-in deeper advanced threat protection features to meet the increasing demands for information security in industrial control systems.
5. Conclusion
Industrial PoE switches, with their outstanding reliability, environmental adaptability, real-time performance, and convenient power supply, have become indispensable core devices in industrial networks. They solve both data transmission and device power supply issues with a single Ethernet cable, greatly simplifying on-site wiring and reducing deployment and maintenance costs.
With the deep advancement of Industry 4.0 and intelligent manufacturing, industrial PoE switches will no longer be just device connectors but will evolve into intelligent, integrated network core nodes, providing crucial support for building more efficient, reliable, and intelligent industrial network infrastructure. In the wave of digital transformation, choosing and deploying industrial PoE switches correctly is an essential part of ensuring stable and efficient operation of industrial production systems.
