1. Overview
When expanding HDMI signal transmission distances, HDMI over fiber extenders and HDMI repeaters are the two most commonly used devices. Although their goals are similar, their technical principles, core capabilities, and applicable scenarios are completely different. Understanding their differences is crucial for constructing a stable and cost-effective video transmission system.

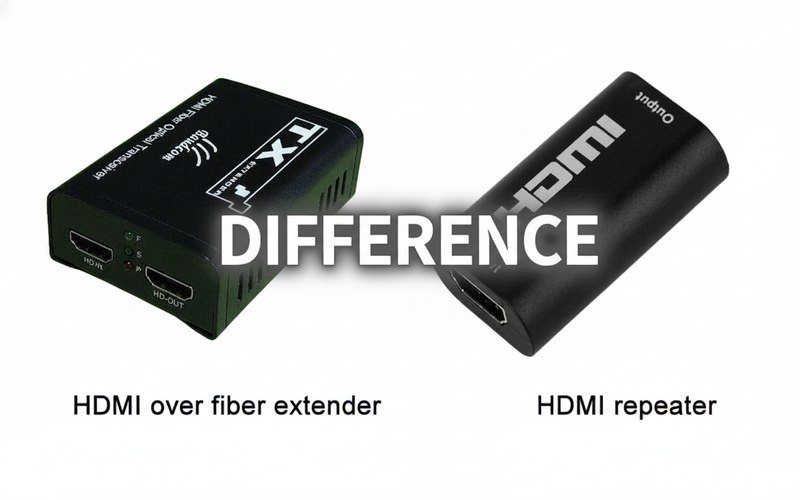

Core Definitions
l HDMI over fiber extender: A device that transmits signals through optical fiber. It consists of a transmitter and a receiver. The transmitter converts electrical signals into optical signals, transmits them via fiber optic cables, and the receiver then converts the optical signals back into electrical signals. Essentially, it is a "signal conversion and transmission system."
l HDMI repeater: A signal amplification device. It receives attenuated HDMI signals, amplifies, shapes, and compensates for them, then retransmits to extend the effective transmission distance of signals over copper cables. Its core concept is a "signal booster."
A practical implementation of this technology is the Baudcom HDMI over Fiber Extender. This system consists of a transmitter and receiver pair, designed to extend HDMI signals over a single fiber optic cable for distances from 3 km up to 20 km, providing a robust solution for long-range, high-quality video transmission.
2. Working Principle and Technical Comparison
2.1 Working Principle
l HDMI over fiber extender: Uses a "electrical-fiber-electrical" conversion mechanism. At the transmitter, HDMI electrical signals are modulated onto a laser beam, turning them into optical signals; the optical signals are transmitted through fiber optic cables, which are immune to electromagnetic interference and have minimal attenuation; at the receiver, the optical signals are demodulated and restored to standard HDMI electrical signals output.
l HDMI repeater: Operates purely in the electrical domain. It has internal signal amplification and equalization circuits, which "repair" HDMI signals after long-distance copper cable transmission, compensating for attenuation and distortion, enhancing signal strength and quality, enabling the signal to continue transmitting through the next section of copper cable.
2.2 Core Technology Comparison
|
Features |
HDMI over fiber extender |
HDMI repeater |
|
Transmission Medium |
Optical fiber |
Copper cable (HDMI cable) |
|
Signal Form |
Electrical signal → Optical signal → Electrical signal |
Electrical signal → Amplified/shaped electrical signal → Electrical signal |
|
Core Process |
Optical-electrical conversion |
Signal amplification and equalization |
|
Essence |
Media conversion and transmission system |
Signal booster |
3. Core Performance Indicators and Application Scenarios Comparison
|
Comparison Dimension |
HDMI over fiber extender |
HDMI repeater |
|
Transmission Distance |
Extremely long (usually 300 meters to 20 kilometers or even farther) |
Moderate (a single device can extend up to 15-25 meters, multi-stage cascade can reach 50-100 meters) |
|
Signal Quality |
Lossless transmission, no image quality degradation, native support for 4K/8K HDR |
The farther the distance, the higher the risk of signal deterioration, high requirements for cable quality |
|
Anti-Interference |
Extremely strong, fiber optic itself immune to all electromagnetic interference |
Weaker, copper cables are susceptible to strong electromagnetic interference |
|
Security |
High, fiber optic does not radiate signals, difficult to eavesdrop |
Low, copper cables may radiate signals, potential security risks |
|
System Complexity |
Higher, requires pairing (one transmitter and one receiver), fiber optic laying needed |
Lower, plug and play, single device operation |
|
Cost |
Higher (cost of equipment and fiber optic cabling) |
Lower (cheaper equipment, uses existing copper cables) |
|
Typical Application Scenarios |
Large conference rooms, command centers, broadcasting, large venues, long-distance monitoring |
Home theaters, small conference rooms, classrooms, digital signage, short-distance extension |
4. How to choose: HDMI over fiber extender or HDMI repeater?
The key to selection lies in weighing transmission distance, environmental interference, image quality requirements, and budget.
Choose an HDMI over fiber extender when:
a. The transmission distance exceeds 50 meters, especially reaching hundreds of meters or even kilometer levels.
b. The transmission path passes through sources of strong electromagnetic interference (such as power distribution rooms, large motors, or nearby wireless base stations).
c. There are extreme requirements for image quality and stability, necessitating lossless transmission of 4K/8K HDR content.
d. There are security requirements for transmission, needing to prevent signal leakage.
e. The budget is sufficient, and the project permits fiber optic cabling.
Choose an HDMI repeater when:
f. The transmission distance is between 15 meters and 50 meters, and environmental interference is relatively low.
g. The application scenario is a home or small commercial environment, such as connecting a gaming console in the living room to a bedroom TV.
h. The budget is limited, seeking the highest cost-effectiveness.
i. The desire for plug-and-play operation without complex wiring and configuration.
A special case: in ultra-long-distance projects (such as several kilometers) requiring the highest video quality, a combination of "repeater + HDMI over fiber extender" may be used. That is, using the repeater within the equipment room to initially extract and strengthen the signal, then connecting to the fiber optic extender for long-distance fiber transmission.
5. Summary and Outlook
HDMI over fiber extender and HDMI repeater are products of two different technical paths to solve the limitations of HDMI transmission distance; they are complementary rather than substitutive.
HDMI over fiber extender is the "expert in long-distance, high-quality transmission". Relying on the physical advantages of fiber optics, it thoroughly breaks through the restrictions of distance and interference, making it the first choice for professional and engineering-grade applications.
HDMI repeater is the "master of short-distance, high cost effectiveness". Through simple and effective methods, within limited budgets and distances, it provides a convenient solution and is favored in consumer and small commercial markets.
Future development trends include:
Higher specifications support: both will continue to upgrade to support HDMI 2.1’s higher bandwidth (48Gbps), higher resolutions (8K@60Hz, 4K@120Hz), and dynamic HDR formats.
Function integration: optical extenders will integrate the synchronized transmission of other signals such as USB, audio, and control signals; repeaters will become more miniaturized and low power.
Intelligentization and network management: high-end optical extenders will support remote status monitoring, fault diagnosis, and other network management functions.
